Wacker Neuson LTW20Z3-V S Parts Manual

Catégorie
Groupes électrogènes
Taper
Parts Manual
A nameplate listing the Model Number, Item Number, Revision, and Serial Number is
attached to each unit. Please record the information found on this plate so it will be available
should the nameplate become lost or damaged. When ordering parts or requesting service
information, you will always be asked to specify the model, item number, revision number,
and serial number of the unit.
Ein Typenschild mit Typ, Artikelnummer, Version und Maschinen-Nummer ist an jedem
Gerät angebracht. Die Daten von diesem Schild bitte notieren, damit sie auch bei Verlust
oder Beschädigung des Schildes noch vorhanden sind. Der Typ, die Artikel-Nummer, die
Versions- Nummer und die Maschinen-Nummer sind bei der Ersatzteilbestellung oder
Nachfragen bezüglich Service-Informationen stets erforderlich.
Una placa de identificación con el modelo, número de referencia, nivel de revisión y número
de serie ha sido añadida en cada máquina. Favor de anotar los datos en la placa en caso
de que la placa de identificación sea destruida o perdida. En todos los pedidos para
repuestos necesita siempre el modelo, el número de referencia, el nivel de revisión y el
número de serie de la máquina en cuestión.
Une plaque signalétique mentionnant le modèle, le numéro de référence, le niveau de
revision et le numéro de série est fixée sur chaque machine. Veuillez noter les informations
relevées sur cette plaque de façon à ce qu’elles soient toujours disponibles si la plaque
signalétique venait à être perdue ou endommagée. Lorsq ue vous commandez des pièces
détachées ou vous sollicitez des informations après-vente, on vous demandera toujours de
préciser le modèle, le numéro de référence, le niveau de revision et le numéro de série de
la machine.

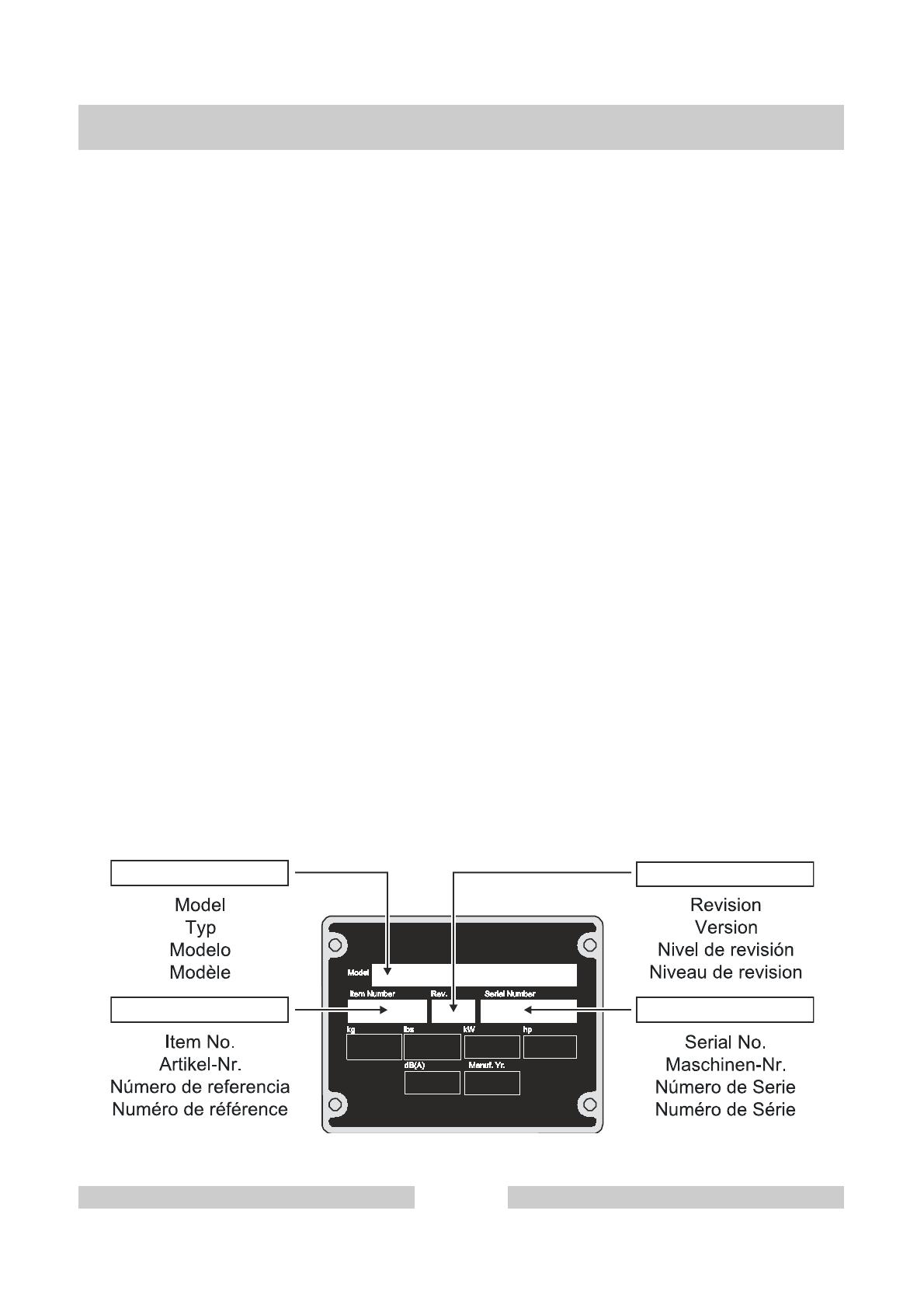

My machine’s numbers are / Die Nummern meines Gerätes sind /
Los números de mi máquina son / Les numéros de ma machine son :
LTW20Z3-V S
Nameplate
Typenschild
Plaque signalétique
Placa de Identificación
5100015094 - 104
3
Part Numbers appearing in boldface type are recommended spare parts. This means that
these parts are subject to wear under normal operating conditions and may require periodic
service or replacement. It is recommended that these items be stocked to meet the
expected service requirements of this model. Actual stocking quantities of these and other
parts used in more extensive repairs will depend on the service practices of each customer.
Bei den in den Ersatzteillisten fettgedruckten Nummern handelt es sich um empfohlene
Ersatzteile. Dies bedeutet, daß diese Teile bei normalen Anwendungsbedingungen
natürlicher Abnutzung ausgesetzt sind und gelegentlich ersetzt oder überarbeitet werden
müssen. Es wird geraten, diese Teile auf Lager bereit zu haben, um für Service-Arbeiten an
diesem Gerät vorbereitet zu sein. Lagerbestände für diese und andere Teile, welche für
ausgiebigere Reparaturarbeiten benötigt werden, können je nach Service-Gewohnheiten
der einzelnen Kunden variieren.
Los números de partes en negritas en las Listas Ilustradas de Partes son los repuestos
recomendados, ésto quiere decir que estas partes se desgastarán bajo circunstancias de
funcionamiento normales y pueden requerir servicio periódico o su reemplazo. Se
recomienda que el cliente mantenga un abastecimiento adecuado de estas partes para
poder satisfacer la demanda requerida por el servicio a la máquina. La cantidad de
repuestos que el cliente necesitará para reparaciones dependerá de la póliza de servicio de
cada cliente.
Les numéros de pièces imprimés en caractères gras dans les Listes des Pièces Détachées
de ce manuel sont les pièces détachées recommandées par la Wacker. Cela veut dire que
ces pièces sont sujettes à usure dans des conditions de travail normales et peuvent
nécessiter de l’entretien ou leur remplacement. Nous recommandons que vous disposez
d’un stock de ces pièces pour pouvoir satisfaire la demande d’entretien de cette machine.
Le client doit decider lui-même de la quantité exacte de pièces de rechange qu’il disposera
dans ses stocks.
Part Numbers - Boldface
Fettgedruckte Artikelnummern
LTW20Z3-V S
Números de partes en negritas
Numéros de pièce - en caractères gras
4
5100015094 - 104
Tower Coiled Cord Routing
Aufgewickelte Turmkabelverlegung
Disposición de cable de la torre
Itinéraire du câble de la tour
8
Light fixture
Licht
Artefacto
Projecteur
10
Option-Power Rotator
Sonderzubehör-Drehvorrichtung
Opción-Dispositivo giratorio
Option-Appareil rotatif
12
Light cpl.
Beleuchtungseinrichtung
Artefactos compl.
Projecteurs compl.
16
Tower cpl., LTW
Turm kpl.
Torre compl.
Tour compl.
20
Ballast Box cpl./Fuel Filter
Ballastkasten kpl./Kraftstofffilter
Caja de reactancia compl./Filtro de combustible
Boîtier à ballast compl./Filtr
22
Control Box
Kontrollkasten
Caja de Control
Boîtier de Commande
24
Receptacle Panel cpl.
Steckdosen Tafel
Conjunto Panel Tomacorrientes
Tableau de Prises de Courant
26
Battery
Batterie
Batería
Batterie
30
Enclosure Panels
Gehäuseblechtafeln
Paneles de la cubierta
Tableaux de l'enceinte
32
Fuel Tank/Engine
Kraftstofftank/Motor
Tanque de Combustible/Motor
Réservoir de Carburant/Moteur
36
Fuel Hose Routing
Kraftstoffschlauchverlegung
Disposición de manguera de combustible
Itinéraire de tuyau de carbura
38
Switch/Hydraulic pump
Schalter/Hydraulikpumpe
Interruptor/Bomba hidráulica
Interrupteur/Pompe hydraulique
40
Pump cpl.
Pumpe kpl.
Bomba compl.
Pompe compl.
42
LTW20Z3-V S
Table of Contents
Inhaltsverzeichnis
Indice
Table des matières
5100015094 - 104
5
Radiator cpl.
Kühler kpl.
Radiador compl.
Radiateur compl.
44
Muffler cpl.
Auspufftopf kpl.
Silenciador compl.
Pot d'Echappement compl.
48
Engine/Generator Mounting
Montage - Motor und Generator
Montaje - Motor y Generador
Montage - Moteur et Générateur
50
Generator cpl.
Generator kpl.
Conjunto generador
Générateur compl.
54
Skid Assembly
Unterbau
Conjunto Patín
Base du Générateur Compl.
56
Wiring cpl., Trailer
Verdrahtung kpl. für Anhänger
Cables compl. de remolque
Câblage compl. de remorque
58
Control Box Wiring Diagram
Kontrollkasten-Verdrahtungsplan
Caja de Control - Esquema Alámbrico
Boîtier de Commande - Schema d
60
Wiring Harness/Receptacle
Kabelbaum/Steckdose
Conjunto de cables/Tomacorriente
Harnais de câbles électriques/
62
Wiring Harness/Alternator
Kabelbaum
Conjunto de cableste
Harnais de câbles électriques
64
Wiring Harness/Engine
Motorkabelbaum
Conjunto de Cables de Motor
Harnais de Câbles Électriques
66
Labels
Aufkleber
Calcomanias
Autocollants
68
Label-sheet, operation
Aufkleberblatt-Betrieb
Hoja de calcomanias-operación
Feuille d'autocollants-opérati
70
Engine Maintenance
Motorwartung
Mantenimiento del Motor
Entretien de Moteur
73
Air Filter cpl.
Luftfilter kpl.
Filtro del Aire compl.
Filtre à Air compl.
74
Table of Contents
Inhaltsverzeichnis
LTW20Z3-V S
Indice
Table des matières
6
5100015094 - 104
Engine cpl.
Motor kpl.
Motor compl.
Moteur compl.
76
Factory-Installed Options
Fabrikfertiges Sonderzubehör
Opciones Instaladas en la Fábrica
Options Installées à l'Usine
79
Option-Fluid Containment
Sonderzubehör-Sammelbecken
Opción-recipiente colector
Option-réservoir à liquides
80
Option-Cold Weather Shroud
Sonderzubehör-Haube für kaltes Wetter
Opción-guardera para clima frío
Option-carénage pour temps fro
82
Option-Battery Disconnect
Sonderzubehör-Batterietrennung
Opción-desconexión de la batería
Option-sectionneur de la batte
84
Option-Engine Block Heater
Sonderzubehör-Heizapparat
Opción de calentador para bloque del motor
Option de appareil de chauffag
86
LTW20Z3-V S
Table of Contents
Inhaltsverzeichnis
Indice
Table des matières
5100015094 - 104
7
Tower Coiled Cord Routing
Aufgewickelte Turmkabelverlegung
LTW20Z3-V S
Disposición de cable de la torre
Itinéraire du câble de la tour
8
5100015094 - 104
Ref.
Pos.
Part No.
Artikel Nr.
Qty.
St.
Description
Beschreibung
Descripción
Description
Measurem./Abm.
Torque/Drehm.
Norm
Sealant
Schmierstoff
282
5200018472
1
Hydraulic cylinder
Hydrozylinder
Cilindro hidráulico
Cylindre hydraulique
295
5200018427
1
Step bracket
Trittbrett
Paso
Marchepied
375
5200001980
1
Cord
Kabel
Cable
Cordon
615
5000163956
3
Clamp
Schelle
Abrazadera
Agrafe
712
5200018479
1
Pin, clevis
Bolzen, Lastöse
Pasador de horquilla
Axe, chape
5/8 x 2 1/4
713
5200018480
1
Pin, clevis
Bolzen, Lastöse
Pasador de horquilla
Axe, chape
5/8 X 3-1/2
717
5000116751
2
Cotter pin
Sicherungssplint
Clavija hendida
Goupille fendue
1/8 x 1-1/2in
797
5000028949
3
Screw
Schraube
Tornillo
Vis
M6 x 16
10Nm/7ft.lbs
831
5000164061
8
Hexagonal head cap screw
Sechskantschraube
Tornillo hexagonal
Boulon à tête hexagonale
M10 x 16
838
5000012368
8
Hexagonal head cap screw
Sechskantschraube
Tornillo hexagonal
Vis à tête hexagonale
M12 x 20
86Nm/63ft.lbs
DIN933
851
5000010368
3
Hexagon nut
Sechskantmutter
Tuerca hexagonal
Écrou hexagonal
M6 DIN985
863
5000119510
4
Flange nut
Flanschmutter
Tuerca de reborde
Ecrou de bride
M12
1025
5200022248
1
Seal Kit
Dichtungssatz
Juego-empaque
Jeu-joint
1026
5200022280
1
Fuse
Sicherung
Fusible
Fusible
1027
5200022281
1
Bleed screw
Ablassschraube
Tornillo sangrador
Vis de vidange
LTW20Z3-V S
Tower Coiled Cord Routing
Aufgewickelte Turmkabelverlegung
Disposición de cable de la torre
Itinéraire du câble de la tour
5100015094 - 104
9
Light fixture
Licht
LTW20Z3-V S
Artefacto
Projecteur
10
5100015094 - 104
Ref.
Pos.
Part No.
Artikel Nr.
Qty.
St.
Description
Beschreibung
Descripción
Description
Measurem./Abm.
Torque/Drehm.
Norm
Sealant
Schmierstoff
827
5000155213
4
Screw
Schraube
Tornillo
Vis
M8 x 25
25Nm/18ft.lbs
868
5000030066
4
Locknut
Sechskantmutter
Contratuerca
Contre-écrou
M8
LTW20Z3-V S
Light fixture
Licht
Artefacto
Projecteur
5100015094 - 104
11
Ref.
Pos.
Part No.
Artikel Nr.
Qty.
St.
Description
Beschreibung
Descripción
Description
Measurem./Abm.
Torque/Drehm.
Norm
Sealant
Schmierstoff
360
5200002002
1
Support
Halter
Soporte
Attache
361
5200002006
2
Bracket
Konsole
Soporte
Support
362
5100021197
1
Plate
Platte
Placa
Plaque
363
5100021198
1
Cover
Deckel
Tapa
Couvercle
364
5200002345
1
Bracket
Konsole
Soporte
Support
366
5200002025
1
Disc
Scheibe
Disco
Disque
367
5200002026
6
Disc
Scheibe
Disco
Disque
368
5200002350
2
Disc
Scheibe
Disco
Disque
369
5200002027
1
Disc
Scheibe
Disco
Disque
370
5000119406
2
Knob
Griff
Empuñadura
Poignée
371
5000117816
2
Stud
Gewindebolzen
Perno prisionero
Goujon
M10
380
5200002024
1
Bracket
Konsole
Soporte
Support
381
5200002033
1
Motor
Motor
Motor
Moteur
12VDC
532
5200009665
1
Wire-ground
Erdungsdraht
Alambre a tierra
Fil de masse
534
5200002188
1
Wiring harness
Kabelbaum
Conjunto de cables
Harnais de câbles électriques
584
5200002182
1
Switch
Schalter
Interruptor
Interrupteur
741
5000165222
1
Cord grip
Zugentlastung
Alivio de esfuerzos
Effort à la décharge
3/4in NPT
742
5000165223
2
Cord grip
Zugentlastung
Alivio de esfuerzos
Effort à la décharge
1/2in NPT
745
5000176419
4
Lock nut
Sicherungsmutter
Contratuerca
Contre-écrou
3/4in
746
5000166459
4
Lock nut
Sicherungsmutter
Contratuerca
Contre-écrou
797
5000028949
4
Screw
Schraube
Tornillo
Vis
M6 x 16
10Nm/7ft.lbs
803
5200002038
4
Screw
Schraube
Tornillo
Vis
5/16
827
5000155213
2
Screw
Schraube
Tornillo
Vis
M8 x 25
25Nm/18ft.lbs
853
5000010365
2
Lock nut
Sicherungsmutter
Contratuerca
Contre-écrou
M10 DIN980
854
5000010366
1
Hexagon nut
Sechskantmutter
Tuerca hexagonal
Écrou hexagonal
M12X1.75 DIN985
LTW20Z3-V S
Option-Power Rotator
Sonderzubehör-Drehvorrichtung
Opción-Dispositivo giratorio
Option-Appareil rotatif
5100015094 - 104
13
Ref.
Pos.
Part No.
Artikel Nr.
Qty.
St.
Description
Beschreibung
Descripción
Description
Measurem./Abm.
Torque/Drehm.
Norm
Sealant
Schmierstoff
855
5000010886
1
Hexagon nut
Sechskantmutter
Tuerca hexagonal
Écrou hexagonal
M16 DIN934
859
5000017088
4
Lock nut
Sicherungsmutter
Contratuerca
Contre-écrou
M20
861
5000029117
4
Lock nut
Sicherungsmutter
Contratuerca
Contre-écrou
M6
868
5000030066
2
Locknut
Sechskantmutter
Contratuerca
Contre-écrou
M8
881
5000010616
4
Flat washer
Scheibe
Arandela
Rondelle
883
5000010376
2
Flat washer
Scheibe
Arandela
Rondelle
A13 DIN9021
885
5000031186
1
Flat washer
Scheibe
Arandela
Rondelle
A17 DIN9021
887
5000031565
4
Lockwasher
Spannscheibe
Arandela elástica
Rondelle de ressort
12 DIN6796
LTW20Z3-V S
Option-Power Rotator
Sonderzubehör-Drehvorrichtung
Opción-Dispositivo giratorio
Option-Appareil rotatif
5100015094 - 104
15
Light cpl.
Beleuchtungseinrichtung
LTW20Z3-V S
Artefactos compl.
Projecteurs compl.
16
5100015094 - 104
Ref.
Pos.
Part No.
Artikel Nr.
Qty.
St.
Description
Beschreibung
Descripción
Description
Measurem./Abm.
Torque/Drehm.
Norm
Sealant
Schmierstoff
1
5200012010
1
Reflector
Reflektor
Reflector
Réflecteur
2
5000179040
1
Lens
Linse
Lentes
Lentille
3
5000179041
1
Gasket
Dichtung
Junta
Joint
4
5000179042
2
Ring
Ring
Anillo
Anneau
5
5200012128
1
Set
Satz
Juego
Jeu
6
5200012013
1
Set
Satz
Juego
Jeu
7
5000179045
2
Gasket
Dichtung
Junta
Joint
8
5000179046
1
Cover
Deckel
Tapa
Couvercle
9
5000179047
1
Cover
Deckel
Tapa
Couvercle
10
5000179048
1
Yoke
Gabel
Horquilla
Extrémité à chape
13
5000179051
1
Socket
Sockel
Tomacorriente
Douille
15
5100031798
1
Bulb
Lampe
Bombilla
Ampoule
1100W
16
5000179053
1
Cable
Kabel
Cable
Câble
17
5000165223
1
Cord grip
Zugentlastung
Alivio de esfuerzos
Effort à la décharge
1/2in NPT
18
5200012142
1
Junction box
Abzweigkasten
Caja de distribución
Boîte de tirage
20
5000179056
1
Stud
Gewindebolzen
Perno prisionero
Goujon
21
5000179057
8
Screw
Schraube
Tornillo
Vis
22
5000179058
2
Hexagonal head cap screw
Sechskantschraube
Tornillo hexagonal
Boulon à tête hexagonale
M5 x 20
23
5000180626
2
Hexagonal head cap screw
Sechskantschraube
Tornillo hexagonal
Boulon à tête hexagonale
M5 x 35
24
5000179060
8
Lock washer
Federring
Federring
Rondelle de ressort
M4
25
5000179061
2
Washer
Scheibe
Arandela
Rondelle
26
5000179062
2
Flat washer
Scheibe
Arandela elástica
Rondelle de ressort
27
5000179063
2
Flat washer
Scheibe
Arandela elástica
Rondelle de ressort
28
5000179064
1
Washer
Scheibe
Arandela
Rondelle
29
5000179065
2
Lock washer
Federring
Federring
Rondelle de ressort
M12
LTW20Z3-V S
Light cpl.
Beleuchtungseinrichtung
Artefactos compl.
Projecteurs compl.
5100015094 - 104
17
Ref.
Pos.
Part No.
Artikel Nr.
Qty.
St.
Description
Beschreibung
Descripción
Description
Measurem./Abm.
Torque/Drehm.
Norm
Sealant
Schmierstoff
30
5000179066
8
Lock nut
Sicherungsmutter
Contratuerca
Contre-écrou
M5
37
5200012012
1
Heatshield
Wärmeschutz
Protección calorifuga
Protecteur thermique
38
5000179059
4
Hexagonal head cap screw
Sechskantschraube
Tornillo hexagonal
Boulon à tête hexagonale
M5 x 30
39
5200012140
4
Spacer
Abstandsstück
Espaciador
Entretoise
351
5100031795
1
Light cpl., 1100W
Beleuchtungseinrichtung, 1100W
Artefactos compl., 1100W
Projecteurs compl., 1100W
1100W
LTW20Z3-V S
Light cpl.
Beleuchtungseinrichtung
Artefactos compl.
Projecteurs compl.
5100015094 - 104
19
Ref.
Pos.
Part No.
Artikel Nr.
Qty.
St.
Description
Beschreibung
Descripción
Description
Measurem./Abm.
Torque/Drehm.
Norm
Sealant
Schmierstoff
35
5000159088
1
Fuel/Water Separator
Kraftstoff/Wasserabscheider
Dispositivo para Separar Aguay
Combustible
Purgeur de Diesel-Oil
421
5100031796
4
Ballast, 60HZ 1100W MH
Ballast, 60HZ 1100W MH
Balastro, 60HZ 1100W MH
Matériau de ballast, 60HZ 1100
60 Hz
470
5000165218
2
Clamp
Schelle
Abrazadera
Agrafe
500
5200008089
1
Manual holder
Handbuchhalter
Soporte manual
Support de manuel
624
5000164618
1
Hose fitting
Schlauchverschraubung
Unión de manguera
Raccord de tuyau
3/8 NPT x 5/16in
S22
626
5000153651
1
Fitting
Verschraubung
Unión
Raccord
3/8 NPT x 5/16
S22
820
5000157021
12
Hexagonal flange head screw
Sechskantflanschschraube
Tornillo hexagonal de brida
Vis hexagonale de bride
M8 x 14
35Nm/26ft.lbs
825
5000028404
7
Screw
Schraube
Tornillo
Vis
M8 x 20
35Nm/26ft.lbs
828
5000011542
2
Cheese head screw
Zylinderschraube
Tornillo cilíndrico
Vis à tête cylindrique
24Nm/18ft.lbs
860
5000030066
3
Locknut
Sechskantmutter
Contratuerca
Contre-écrou
M8
877
5000010622
2
Flat washer
Scheibe
Arandela
Rondelle
S9
LTW20Z3-V S
Ballast Box cpl./Fuel Filter
Ballastkasten kpl./Kraftstofffilter
Caja de reactancia compl./Filtro de combustible
Boîtier à ballast compl./Filtr
5100015094 - 104
23
Ref.
Pos.
Part No.
Artikel Nr.
Qty.
St.
Description
Beschreibung
Descripción
Description
Measurem./Abm.
Torque/Drehm.
Norm
Sealant
Schmierstoff
405
5000173417
1
Control box
Schaltkasten
Caja de control
Boîtier des commandes
431
5000177180
1
Outlet breaker
Unterbrecher
Interruptor
Disjoncteur
67A
432
5000176241
4
Outlet breaker
Unterbrecher
Interruptor
Disjoncteur
15A
444
5000174668
1
Hour meter
Stundenzähler
Horometro
Compteur horaire
447
5000176461
2
Terminal block
Anschlussblock
Bloque terminal
Borne serre-fils
10
449
5200003257
1
Engine control module
Motorkontrollmodul
Módulo de mando del motor
Module de contrôle de moteur
469
5000153093
2
Bushing
Buchse
Buje
Douille
2,50 OD x 2,00in
ID
799
5000088237
4
Screw
Schraube
Tornilloatado
Vis
M3 x 6
807
5000154517
11
Pan head screw
Flachkopfschraube
Tornillo de cabeza de cono achatado
Vis ber
M5 x 20
808
5000110951
4
Screw
Schraube
Tornilloatado
Vis
M4 x 20
818
5000011450
1
Hexagonal head cap screw
Sechskantschraube
Tornillo hexagonal
Vis à tête hexagonale
M8 x 60
25Nm/18ft.lbs
DIN933
825
5000028404
2
Screw
Schraube
Tornillo
Vis
M8 x 20
25Nm/18ft.lbs
828
5000011542
2
Cheese head screw
Zylinderschraube
Tornillo cilíndrico
Vis à tête cylindrique
848
5000010370
4
Hexagon nut
Sechskantmutter
Tuerca hexagonal
Écrou hexagonal
852
5000010367
2
Hexagon nut
Sechskantmutter
Tuerca hexagonal
Écrou hexagonal
M8 DIN985
860
5000030066
1
Locknut
Sechskantmutter
Contratuerca
Contre-écrou
M8
873
5000010625
11
Washer
Scheibe
Arandela
Rondelle
877
5000010622
4
Flat washer
Scheibe
Arandela
Rondelle
1050
5000010367
2
Hexagon nut
Sechskantmutter
Tuerca hexagonal
Écrou hexagonal
M8 DIN985
1070
5200012171
2
Relay
Relais
Relai
Relais
12VDC/70A
1071
5200012170
1
Relay
Relais
Relai
Relais
12VDC/70A
LTW20Z3-V S
Control Box
Kontrollkasten
Caja de Control
Boîtier de Commande
5100015094 - 104
25
Ref.
Pos.
Part No.
Artikel Nr.
Qty.
St.
Description
Beschreibung
Descripción
Description
Measurem./Abm.
Torque/Drehm.
Norm
Sealant
Schmierstoff
202
5000172884
1
Enclosure panel
Gehäuse, Panel
Panel de la caja
Panneau d'enceinte
407
5000174732
1
Adapter plate
Adapterplatte
Placa adaptador
Plaque d'adaptateur
410
5000173422
1
Receptacle box
Steckdose
Receptáculo
Prise de courant
411
5000174991
1
Receptacle panel
Steckdosentafel
Panel tomacorrientes
Tableau de prises de courant
412
5000179925
1
Grommet
Tülle
Ojal
Passe-fil
433
5000082946
4
Circuit breaker
Unterbrecher
Interruptor de circuito
Coupe-circuit
20A
434
5000176416
2
Outlet breaker
Unterbrecher
Interruptor
Disjoncteur
30A
435
5000177179
1
Outlet breaker
Unterbrecher
Interruptor
Disjoncteur
60A
440
5000089849
4
GFI Receptacle Kit
Satz-GFI Steckdose
Juego de tomacorriente GFI
Jeu de prise de courant GFI
441
5000088827
2
Receptacle (socket)
Steckdose
Tomacorriente
Prise de courant
30A
443
5000174989
1
Receptacle
Steckdose
Tomacorriente
Prise de courant
60A
445
5000165439
1
Push button switch
Druckknopfschalter
Interruptor de botón
Interrupteur à poussoir
447
5000176461
2
Terminal block
Anschlussblock
Bloque terminal
Borne serre-fils
10
450
5000155460
1
Label
Aufkleber
Calcomania
Autocollant
455
5000174966
2
Cover
Deckel
Tapa
Couvercle
456
5000174967
2
Cover, receptacle, vertical
Abdeckung, Buchse, vertikal
Tapa, tomacorriente vertical
Couvercle, prise, vertical
790
5000085454
4
Insert
Einsatz
Inserto
Insertion
M8
796
5000174080
4
Rivet
Niet
Remache
Rivet
3/16 x 0,45in
799
5000088237
4
Screw
Schraube
Tornilloatado
Vis
M3 x 6
800
5100019401
8
Screw
Schraube
Tornillo
Vis
M3X20
2Nm/1ft.lbs
804
5000110405
14
Screw
Schraube
Tornillo
Vis
M4 x 14
3Nm/2ft.lbs
808
5000110951
12
Screw
Schraube
Tornilloatado
Vis
M4 x 20
3Nm/2ft.lbs
819
5000161194
8
Hexagonal head cap screw
Sechskantschraube
Tornillo hexagonal
Boulon à tête hexagonale
M8 x 25
24Nm/18ft.lbs
825
5000028404
4
Screw
Schraube
Tornillo
Vis
M8 x 20
35Nm/26ft.lbs
847
5000180533
8
Lock nut
Sicherungsmutter
Contratuerca
Contre-écrou
M3
LTW20Z3-V S
Receptacle Panel cpl.
Steckdosen Tafel
Conjunto Panel Tomacorrientes
Tableau de Prises de Courant
5100015094 - 104
27
Ref.
Pos.
Part No.
Artikel Nr.
Qty.
St.
Description
Beschreibung
Descripción
Description
Measurem./Abm.
Torque/Drehm.
Norm
Sealant
Schmierstoff
848
5000010370
26
Hexagon nut
Sechskantmutter
Tuerca hexagonal
Écrou hexagonal
860
5000030066
4
Locknut
Sechskantmutter
Contratuerca
Contre-écrou
M8
862
5000010897
1
Wing nut
Flügelmutter
Tuerca de mariposa
Écrou à oreilles
M10 DIN315
885
5000158899
8
Flat washer
Unterlegscheibe
Arandela plana
Rondelle
M8
890
5000160626
4
Lock washer
Federring
Federring
Rondelle de ressort
M8
897
5000167809
3
Washer
Scheibe
Arandela
Rondelle
No. 8
898
5100019402
2
Washer
Scheibe
Arandela
Rondelle
M3
LTW20Z3-V S
Receptacle Panel cpl.
Steckdosen Tafel
Conjunto Panel Tomacorrientes
Tableau de Prises de Courant
5100015094 - 104
29
Ref.
Pos.
Part No.
Artikel Nr.
Qty.
St.
Description
Beschreibung
Descripción
Description
Measurem./Abm.
Torque/Drehm.
Norm
Sealant
Schmierstoff
460
5000153758
1
Battery
Nasse Batterie
Batería húmeda
Batterie à l'eau
4in
461
5000153232
1
Positive battery cable
Plusbatteriekabel
Cable positivo de batería
Câble positif de batterie
462
5000158986
1
Negative battery cable
Minusbatteriekabel
Cable negativo de batería
Câble négatif de batterie
24in
465
5000159046
1
Battery bracket
Batteriestütze
Soporte de batería
Support de batterie
466
5000154319
2
L-Bolt
L-Bolzen
Perno forma L
Boulon L
1/2-20 x 1-1/2in
LTW20Z3-V S
Battery
Batterie
Batería
Batterie
5100015094 - 104
31
Enclosure Panels
Gehäuseblechtafeln
LTW20Z3-V S
Paneles de la cubierta
Tableaux de l'enceinte
32
5100015094 - 104
1 / 1

dans d''autres langues
