P/NO : MFL68925803 (1510-REV02)

www.lg.com

Please read this manual carefully before operating

your TV and retain it for future reference.

Safety and Reference

OWNER’S MANUAL

LED TV*

* LG LED TVs are LCD TVs with LED backlighting.

32LX330C

42LX330C

42LX530S

43LX341C

49LX341C

55LX341C

60LX341C

65LX341C

43LX540S

49LX540S

55LX540S

60LX540S

65LX540S

43LX310C

49LX310C

32LX300C

22LX570M

28LX570M

32LX570M

43LX570M

32LX770M

43LX770M

*MFL68925803*

ENGLISH

Important Safety Instructions

Always comply with the following precautions

to avoid dangerous situations and ensure peak

performance of your product.

WARNING/CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK). NO

USER SERVICEABLE PARTS INSIDE. REFER TO

QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead

symbol within an equilateral triangle is

intended to alert the user to the presence of

uninsulated dangerous voltage within the

product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock

to persons.

The exclamation point within an

equilateral triangle is intended to alert the

user to the presence of important operating

and maintenance (servicing) instructions in

the literature accompanying the appliance.

WARNING/CAUTION

- TO REDUCE THE RISK OF FIRE AND ELECTRIC

SHOCK, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MOISTURE.

WARNING

If you ignore the warning message, you may

be seriously injured or there is a possibility of

accident or death.

CAUTION

If you ignore the caution message, you may

be slightly injured or the product may be

damaged.

NOTE

The note helps you understand and use the

product safely. Please read the note carefully

before using the product.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

• Do not install near any heat sources such

as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce

heat.

• Do not defeat the safety purpose of the

polarized or grounding-type plug. A polarized

plug has two blades with one wider than the

other. A grounding type plug has two blades

and a third grounding prong. The wide blade or

the third prong are provided for your safety. If

the provided plug does not fit into your outlet,

consult an electrician for replacement of the

obsolete outlet.

• Protect the power cord from being walked on

or pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

• Only use attachments/accessories specified by

the manufacturer.

ENGLISH

• Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

• Unplug this apparatus during lightning storms

or when unused for long periods of time.

• Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has

been damaged in any way, such as power-supply

cord or plug is damaged, liquid has been spilled

or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture,

does not operate normally, or has been dropped.

• Do not press strongly upon the panel with a

hand or a sharp object such as a nail, pencil, or

pen, or make a scratch on it.

• Do not stick metal objects or any other

conductive material into the power cord. Do

not touch the end of the power cord while it is

plugged in.

• Keep the packing anti-moisture material or

vinyl packing out of the reach of children.

Anti-moisture material is harmful if swallowed.

If swallowed, induce vomiting and go to the

nearest hospital. Additionally, vinyl packing can

cause suffocation. Keep it out of the reach of

children.

• CAUTION concerning the Power Cord

(Can differ by country):

Check the specification page of this owner’s

manual to be certain. Do not connect too many

appliances to the same AC power outlet as this

could result in fire or electric shock. Do not

overload wall outlets. Overloaded wall outlets,

loose or damaged wall outlets, extension cords,

frayed power cords, or damaged or cracked

wire insulation are dangerous. Any of these

conditions could result in electric shock or fire.

Periodically examine the cord of your appliance,

and if its appearance indicates damage or

deterioration, unplug it, discontinue use of the

appliance, and have the cord replaced with

an exact replacement part by an authorized

service. Protect the power cord from physical or

mechanical abuse, such as being twisted, kinked,

pinched, closed in a door, or walked upon. Pay

particular attention to plugs, wall outlets, and

the point where the cord exits the appliance. Do

not move the TV with the power cord plugged

in. Do not use a damaged or loose power cord.

Be sure do grasp the plug when unplugging the

power cord. Do not pull on the power cord to

unplug the TV.

• Warning - To reduce the risk of fire or electrical

shock, do not expose this product to rain,

moisture or other liquids. Do not touch the TV

with wet hands. Do not install this product near

flammable objects such as gasoline or candles,

or expose the TV to direct air conditioning.

• Do not expose to dripping or splashing and

do not place objects filled with liquids, such as

vases, cups, etc. on or over the apparatus (e.g.,

on shelves above the unit).

ENGLISH

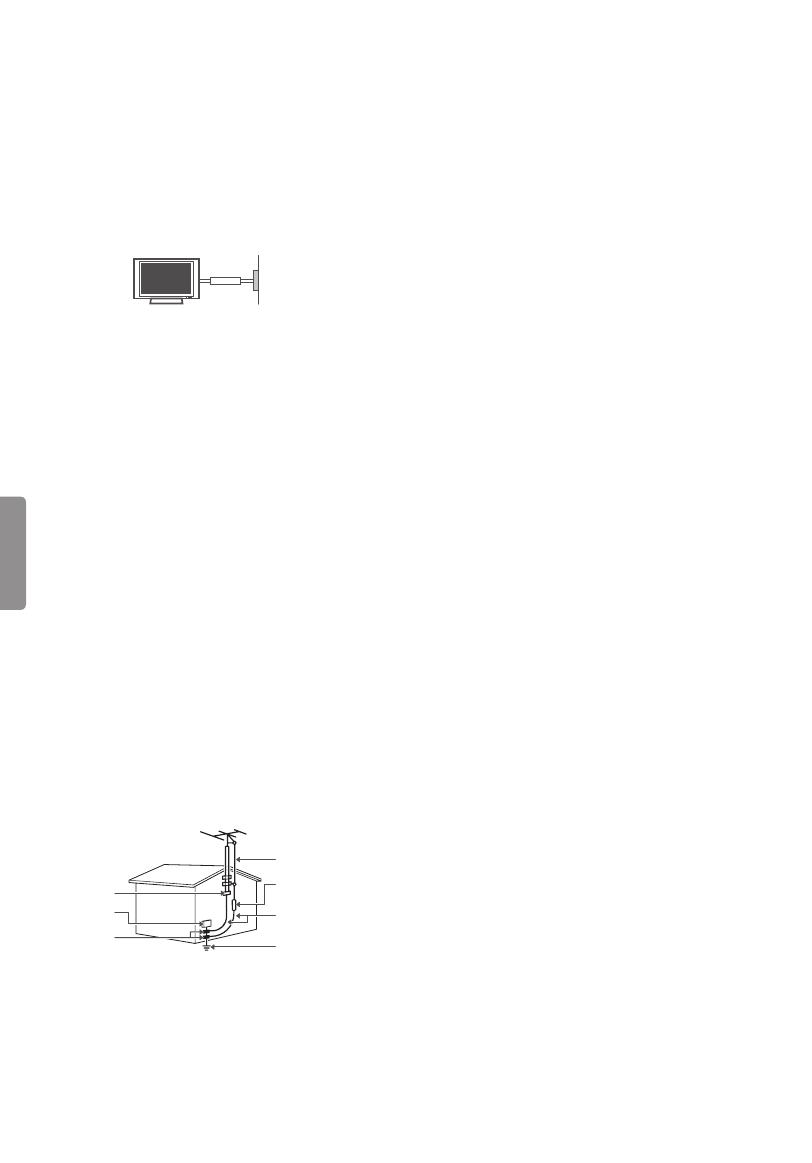

• Grounding

(Except for devices which are not grounded.)

Ensure that you connect the earth ground wire

to prevent possible electric shock (i.e., a TV

with a three-prong grounded AC plug must

be connected to a three-prong grounded AC

outlet). If grounding methods are not possible,

have a qualified electrician install a separate

circuit breaker. Do not try to ground the unit by

connecting it to telephone wires, lightning rods,

or gas pipes.

Circuit

Breaker

Power

Supply

• As long as this unit is connected to the AC wall

outlet, it is not disconnected from the AC power

source even if the unit is turned off.

• Do not attempt to modify this product in any

way without written authorization from LG

Electronics. Unauthorized modification could

void the user’s authority to operate this product.

• Outdoor Antenna Grounding

(Can differ by country):

If an outdoor antenna is installed, follow the

precautions below. An outdoor antenna system

should not be located in the vicinity of overhead

power lines or other electric light or power

circuits, or where it can come in contact with

such power lines or circuits as death or serious

injury can occur. Be sure the antenna system is

grounded to provide some protection against

voltage surges and built-up static charges.

Section 810 of the National Electrical Code (NEC)

in the U.S.A. provides information with respect

to proper grounding of the mast and supporting

structure, grounding of the lead-in wire to

an antenna discharge unit, size of grounding

conductors, location of antenna discharge

unit, connection to grounding electrodes and

requirements for the grounding electrode.

Antenna grounding according to the National

Electrical Code, ANSI/NFPA 70

Ground Clamp

Grounding Conductor

(NEC Section 810-21)

Antenna Lead in Wire

Electric Service

Equipment

Antenna Discharge Unit

(NEC Section 810-20)

Ground Clamp

Power Service Grounding

Electrode System

(NEC Art 250, Part H)

NEC: National Electrical Code

• Cleaning

When cleaning, unplug the power cord and wipe

gently with a soft cloth to prevent scratching. Do

not spray water or other liquids directly on the

TV as electric shock may occur. Do not clean with

chemicals such as alcohol, thinners, or benzene.

• Moving

Make sure the product is turned off, unplugged,

and all cables have been removed. It may take 2

or more people to carry larger TVs. Do not press

or put stress on the front panel of the TV.

• Ventilation

Install your TV where there is proper ventilation.

Do not install in a confined space such as a

bookcase. Do not cover the product with cloth or

other materials while plugged. Do not install in

excessively dusty places.

• If you smell smoke or other odors coming from

the TV, unplug the power cord and contact an

authorized service center.

• Keep the product away from direct sunlight.

• Never touch this apparatus or antenna during a

lightning storm.

• When mounting a TV on the wall, make sure not

to install the TV by hanging the power and signal

cables on the back of the TV.

• Do not allow an impact shock, any objects to fall

into the product, and do not drop anything onto

the screen.

• DISCONNECTING THE DEVICE FROM THE

MAIN POWER

The power plug is the disconnecting device.

In case of an emergency, the power plug must

remain readily accessible.

• Batteries

Store the accessories (battery, etc.) in a safe

location out of the reach of children.

• This apparatus uses batteries. In your community

there might be regulations that require you

to dispose of these batteries properly due to

environmental considerations. Please contact

your local authorities for disposal or recycling

information.

• Do not dispose of batteries in a fire.

• Do not short circuit, disassemble, or allow the

batteries to overheat.

• Do not use high voltage electrical equipment

near the TV, (e.g., a bug zapper.)

This may result in product malfunction.

ENGLISH

• Dot Defect

The panel is a high technology product with

resolution of two million to six million pixels.

In a very few cases, you could see fine dots on

the screen while you’re viewing the TV. Those

dots are deactivated pixels and do not affect the

performance and reliability of the TV.

• Generated Sound

Cracking noise A cracking noise that occurs

when watching or turning off the TV is

generated by plastic thermal contraction due to

temperature and humidity. This noise is common

for products where thermal deformation is

required.

Electrical circuit humming/panel buzzing

A low level noise is generated from a high-

speed switching circuit, which supplies a large

amount of current to operate a product. It varies

depending upon the product. This generated

sound does not affect the performance and

reliability of the product.

• Take care not to touch the ventilation openings.

When watching the TV for a long period, the

ventilation openings may become hot. This does

not affect the performance of the product or

cause defects in the product.

• Do not install this product on a wall if it could be

exposed to oil or oil mist. This may damage the

product and cause it to fall.

• If the TV feels cold to the touch, there may

be a small flicker when it is turned on. This is

normal; there is nothing wrong with TV. Some

minute dot defects may be visible on the screen,

appearing as tiny red, green, or blue spots.

However, they have no adverse effect on the TV’s

performance. Avoid touching the LCD screen or

holding your finger(s) against it for long periods

of time. Doing so may produce some temporary

distortion effects on the screen.

• If water or another substance enters the product

(like a AC adapter, power cord, TV), disconnect

the power cord and contact the service centre

immediately.

Otherwise, this may result in fire or electric

shock.

• Only use an authorized AC adapter and power

cord approved by LG Electronics. Otherwise, this

may result in fire, electric shock, malfunction or

product deformation.

• Never Disassemble the AC adapter or power

cord.

This may result in fire or electric shock.

• Handle the adapter carefully to avoid dropping

or striking it. An impact could damage the

adapter.

• Displaying a still image for a prolonged period

of time may cause an image sticking. Avoid

displaying a fixed image on the TV screen for a

extended length of time.

ENGLISH

FCC Notice

(For USA)

This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference in a residential

installation. This equipment generates, uses

and can radiate radio frequency energy and, if

not installed and used in accordance with the

instructions, may cause harmful interference

to radio communications. However, there is no

guarantee that interference will not occur in a

particular installation. If this equipment does

cause harmful interference to radio or television

reception, which can be determined by turning

the equipment off and on, the user is encouraged

to try to correct the interference by one or more of

the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment

and the receiver.

- Connect the equipment to an outlet on a circuit

different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV

technician for help.

This device complies with part 15 of the FCC

Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful

interference and (2) this device must accept any

interference received, including interference that

may cause undesired operation of the device. Any

changes or modifications in construction of this

device which are not expressly approved by the

party responsible for compliance could void the

user’s authority to operate the equipment.

FCC Radio Frequency Interference

Requirements (for UNII devices)

High power radars are allocated as primary users

of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands.

These radar stations can cause interference with

and/or damage this device. This device cannot be

co-located with any other transmitter.

FCC RF Radiation Exposure Statement

[For having wireless function (WLAN, Bluetooth,...)]

This equipment complies with FCC radiation

exposure limits set forth for an uncontrolled

environment. This transmitter must not be

colocated or operating in conjunction with any

other antenna or transmitter. This equipment

should be installed and operated with minimum

distance 20 cm (7.8 inches) between the radiator

and your body. Users must follow the specific

operating instructions for satisfying RF exposure

compliance.

Industry Canada Statement

(For Canada)

[For having wireless function (WLAN, Bluetooth,...)]

This device complies with RSS-210 of the Industry

Canada Rules. Operation is subject to the following

two conditions:

1. This device may not cause interference and

2. This device must accept any interference,

including interference that may cause undesired

operation of the device.

IC Radiation Exposure Statement

(For Canada)

[For having wireless function (WLAN, Bluetooth,...)]

This equipment complies with IC radiation

exposure limits set forth for an uncontrolled

environment. This equipment should be installed

and operated with minimum distance 20 cm (7.8

inches) between the radiator & your body.

NOTE : THE MANUFACTURER IS NOT RESPONSIBLE

FOR ANY RADIO OR TV INTERFERENCE CAUSED

BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD

VOID THE USER’S AUTHORITY TO OPERATE THE

EQUIPMENT.

ENGLISH

WARNING

(For Canada)

[For product having the wireless function using 5

GHz frequency bands]

• The device for operation in the band 5150–5250

MHz is only for indoor use to reduce the

potential for harmful interference to co-channel

mobile satellite systems;

• The maximum antenna gain permitted for

devices in the bands 5250–5350 MHz and

5470–5725 MHz shall comply with the EIRP limit;

and

• The maximum antenna gain permitted for

devices in the band 5725–5825 MHz shall

comply with the EIRP limits specified for point-

to-point and non point-to-point operation as

appropriate.

• High-power radars are allocated as primary users

(i.e. priority users) of the bands 5250–5350 MHz

and 5650–5850 MHz and that these radars could

cause interference and/or damage to LE-LAN

devices.

Note to Cable/TV Installer

(For USA and Canada)

This reminder is provided to call the CATV system

installer’s attention to Article 820-40 of the

National Electric Code (U.S.A.). The code provides

guidelines for proper grounding and, in particular,

specifies that the cable ground shall be connected

to the grounding system of the building, as close

to the point of the cable entry as practical.

Preparing

NOTE

• Image shown may differ from your TV.

• Your TV’s OSD (On Screen Display) may differ

slightly from that shown in this manual.

• The available menus and options may differ from

the input source or product model that you are

using.

• New features may be added to this TV in the

future.

• The items supplied with your product may vary

depending upon the model.

• Product specifications or contents of this manual

may be changed without prior notice due to

upgrade of product functions.

• For an optimal connection, HDMI cables and USB

devices should have bezels less than 10 mm (0.39

inches) thick and 18 mm (0.7 inches) width.

• Use an extension cable that supports USB 2.0 if

the USB cable or USB flash drive does not fit into

your TV’s USB port.

• Use a certified cable with the HDMI logo

attached. If you do not use a certified HDMI

cable, the screen may not display or a

connection error may occur.

• Recommended HDMI cable types (3 m or less)

- High-Speed HDMI®/™ cable

- High-Speed HDMI®/™ cable with Ethernet

*A 10 mm (0.39 inches)

*B 18 mm (0.7 inches)

CAUTION

• Do not use any unapproved items to ensure the

safety and lifespan of the product.

• Any damages or injuries by using unapproved

items are not covered by the warranty.

• Some models appear to have a thin film on the

screen. It is actually part of the screen; do not

remove it.

(Except for LX570M, LX770M series)

• When attaching the stand to the TV set, place

the screen facing down on a cushioned table or

flat surface to protect the screen from scratches.

• Make sure that the screws are fastened tightly.

(If they are not fastened securely enough, the TV

may tilt forward after being installed.)

• Do not fasten the screws with excessive force;

otherwise, they may be worn out and become

loose.

ENGLISH

Warning when using USB storage devices

• USB storage devices with a built-in auto

recognition program or its own driver may not

work.

• Some USB storage devices may not work or may

work improperly.

• Use only those USB storage devices formatted

with FAT32 or NTFS File System provided by

Windows.

• For external USB HDD, use devices with less than

5V-rated voltages and 500 mA-rated current.

• It is recommended to use USB flash drive with 32

GB or less and USB HDD with 2 TB or less.

• If a USB HDD with power-saving function does

not work properly, turn the power off and on.

For more information, refer to the user manual

of USB HDD.

• Data in the USB storage device can be damaged

so back up important files in other devices. Data

maintenance is the user’s responsibility. The

manufacturer is not responsible for data loss.

Maintenance

Cleaning Your TV

Clean your TV regularly to keep it at peak

performance and to extend the product’s lifespan.

CAUTION

• Before cleaning, turn the power off and

disconnect the power cord and all other cables.

• When the TV is left unattended or unused for a

long time, disconnect the power cord from the

wall outlet to prevent possible damage from

lightning or power surges.

Screen, Frame, Cabinet, and Stand

To remove dust or light dirt, wipe the surface with

a dry, clean, and soft cloth.

To remove major dirt, wipe the surface with a soft

cloth dampened in clean water or a diluted mild

detergent. Then wipe immediately with a dry cloth.

CAUTION

• Do not push, rub, or hit the surface with your

fingernail or a sharp object, as this may result in

scratches on the screen and image distortions.

• Do not use any chemicals, such as waxes,

benzene, alcohol, thinners, insecticides, air

fresheners, or lubricants, as these may damage

the screen’s finish and cause discoloration.

• Do not spray liquid onto the surface. If water

enters the TV, it may result in fire, electric shock,

or malfunction.

Power Cord

Remove the accumulated dust or dirt on the power

cord regularly.

Lifting and Moving the TV

When moving or lifting the TV, read the following

to prevent the TV from being scratched or

damaged and for safe transportation regardless of

its type and size.

• It is recommended to move the TV in the box or

packing material that the TV originally came in.

• Before moving or lifting the TV, disconnect the

power cord and all cables.

• When holding the TV, the screen

should face away from you to

avoid damage.

• Hold the top and bottom of the TV frame firmly.

Make sure not to hold the transparent part,

speaker, or speaker grille area.

• Use at least two people to move

a large TV.

• When transporting the TV by

hand, hold the TV as shown in the

following illustration.

• When transporting the TV, do not expose the TV

to jolts or excessive vibration.

• When transporting the TV, keep the TV upright;

never turn the TV on its side or tilt towards the

left or right.

ENGLISH

CAUTION

• When handling the TV, be careful not to damage

the protruding joystick button.

(Depending upon model)

CAUTION

• Avoid touching the screen at all times, as this

may result in damage to the screen.

• Do not place the product on the floor with its

front facing down without padding. Failure to do

so may result in damage to the screen.

• Do not move the TV by holding the cable

holders, as the cable holders may break, and

injuries and damage to the TV may occur.

(Depending upon model)

Using the Joystick Button

(Image shown may differ from your TV.)

You can operate the TV by pressing the button or

moving the joystick left, right, up, or down.

Joystick Button

Basic Functions

When the TV is turned off, place your

finger on the joystick button, press it

once, and release it.

Power On

When the TV is turned on, place your

finger on the joystick button, press it

once for a few seconds, and release it.

(However, if the menu button is on the

screen, pressing and holding the joystick

button will let you exit the menu.)

Power Off

If you place your finger over the joystick

button and move it left or right, you can

adjust the volume level. (Depending

upon model)

Volume

Control

If you place your finger over the joystick

button and move it up or down, you

can scroll through the saved channels.

(Depending upon model)

Channels

Control

NOTE

• Move the joystick up, down, left, or right. Be

careful not to press the joystick button. If you

press the joystick button first, you may not be

able to adjust the volume level and/or scroll

through saved channels.

Adjusting the Menu

(Depending upon model)

When the TV is turned on, press the joystick button

one time. You can adjust the menu items moving

the joystick button up, down, left, or right.

Turns the power off.

Accesses the main menu.

Clears on-screen displays and returns to TV viewing

Changes the input source.

NOTE

• Menu item 11 (Key Defeat) must be set to 0

(zero) for the menu to work. Because the default

value is 1 (one), the menu does not work.

(For LX570M, LX770M series)

ENGLISH

Mounting on a Table

(Except for LX570M, LX770M series)

(Image shown may differ from your TV.)

1 Lift and tilt the TV into its upright position on a

table.

- Leave a 10 cm (4 inches) (minimum) space

from the wall for proper ventilation.

10 cm

(4 inches)

2 Connect the power cord to a wall outlet.

CAUTION

• Do not place the TV near or on sources of heat,

as this may result in fire or other damage.

Using the Kensington Security System

(optional)

(Depending upon model)

(Image shown may dier from your TV.)

The Kensington security system connector is

located at the rear of the TV. For more information

of installation and using, refer to the manual

provided with the Kensington security system

or visit http://www.kensington.com. Connect the

Kensington security system cable between the TV

and a table.

NOTE

• The Kensington security system is optional. You

can obtain additional accessories from your local

dealer.

Securing the TV to a Wall

(optional)

(Depending upon model)

(Image shown may differ from your TV.)

1 Insert and tighten the eye-bolts or TV brackets

and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts

position, remove the bolts first.

2 Mount the wall brackets with the bolts to the

wall. Match the location of the wall bracket and

the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly

with a sturdy rope or cable. Make sure to keep

the rope parallel to the flat surface.

CAUTION

• Make sure that children do not climb on or hang

on the TV.

NOTE

• Use a platform or cabinet that is strong and large

enough to support the TV securely.

• Brackets, bolts, and ropes are optional. You can

obtain additional accessories from your local

dealer.

Mounting on a Wall

An optional wall mount can be used with your

LG Television. Consult with your local dealer for

a wall mount that supports the VESA standard

used by your TV model. Carefully attach the wall

mount bracket at the rear of the TV. Install the wall

mount bracket on a solid wall perpendicular to the

floor. If you are attaching the TV to other building

materials, please contact qualified personnel to

install the wall mount. Detailed instructions will

be included with the wall mount. We recommend

that you use an LG brand wall mount. The LG wall

mount is easy to adjust or to connect the cables.

ENGLISH

When you do not use LG’s wall mount bracket,

use a wall mount bracket where the device is

adequately secured to the wall with enough space

to allow connectivity to external devices. If you are

using a non-adjustable mount, attach the mount

to the wall. Attach the cables to the TV first, then

attach the TV to the mount.

10 cm

(4 inches)

Make sure to use screws and wall mounts that

meet the VESA standard. Standard dimensions for

the wall mount kits are described in the following

table.

Model

32LX330C

43LX310C

32LX300C

43LX341C

43LX540S

32/43LX570M

32/43LX770M

42LX330C

42LX530S

VESA (A x B) 200 x 200 400 x 400

Standard screw M6 M6

Number of screws 4 4

Wall mount bracket

(optional)

LSW240B

MSW240

LSW440B

MSW240

Model

49LX341C

55LX341C

49LX540S

55LX540S

49LX310C

60LX341C

65LX341C

60LX540S

65LX540S

VESA (A x B) 300 x 300 300 x 300

Standard screw M6 M6

Number of screws 4 4

Wall mount bracket

(optional)

LSW350B

MSW240

LSW350B

Model 22LX570M 28LX570M

VESA (A x B) 75 x 75 100 x 100

Standard screw M4 M4

Number of screws 4 4

Wall mount bracket

(optional)

LSW140 LSW140

CAUTION

• Disconnect the power before moving or

installing the TV. Otherwise electric shock may

occur.

• Remove the stand before installing the TV on a

wall mount by performing the stand attachment

in reverse. (Depending upon model)

• If you install the TV on a ceiling or slanted wall,

it may fall and result in severe injury. Use an

authorized LG wall mount and contact the local

dealer or qualified personnel. When using a

third-party wall mount, it is not covered by the

warranty.

• Do not overtighten the screws as this may cause

damage to the TV and void your warranty.

• Use the screws and wall mounts that meet the

VESA standard. Any damages or injuries by

misuse or using an improper accessory are not

covered by the warranty.

• Screw length from outer surface of back cover

should be under 8 mm. (For 22/28LX570M)

Wall Mount Pad

Back Cover

Standard Screw

Max. 8 mm

Back Cover

NOTE

• Use the screws that are listed in the VESA

standard screw specifications.

• The wall mount kit includes an installation

manual and necessary parts.

• The wall mount bracket is optional. You can

obtain additional accessories from your local

dealer.

• The length of screws may differ depending upon

the wall mount. Make sure to use the proper

length.

• For more information, refer to the manual

supplied with the wall mount.

ENGLISH

• When using the wall mounting bracket, apply

the adhesive protective label to cover the

unused stand opening(s). This will prevent the

accumulation of dust and dirt. (Use only when

provided with your particular model.)

Provided Item

Adhesive Protective Label

• When attaching a wall mounting bracket to the

TV, insert the wall mount inner spacers into the

TV wall mount holes to adjust the vertical angle

of the TV. (Use only when provided with your

particular model.)

Provided Item

Wall Mount Spacer

• Please contact your dealer or mount vendor for

other wall mounting options.

Connections (Notifications)

You can connect various external devices to the TV.

Supported external devices are: HD receivers, DVD

players, VCRs, audio systems, USB storage devices,

PC, gaming devices, and other external devices. For

more information on external device’s connection,

refer to the manual provided with each device.

NOTE

• If you record a TV program on a DVD recorder or

VCR, make sure to connect the TV signal input

cable to the TV through a DVD recorder or VCR.

For more information about recording, refer to

the manual provided with the connected device.

• The external device connections shown may

differ slightly from illustrations in a manual.

• Connect external devices to the TV regardless

about the order of the TV port.

• If you connect a gaming device to the TV, use the

cable supplied with the gaming device.

• Refer to the external equipment’s manual for

operating instructions.

• USB port supports 0.5A electric current. If you

need more electric current in the case of an

external HDD, use a separate power adapter for

the device.

(For 22/28LX570M)

Connecting to an Antenna or

Cable

Connect an antenna, cable, or cable box to watch

TV while referring to the following. The illustrations

may differ from the actual items and an RF cable is

optional.

CAUTION

• Make sure not to bend the copper wire of the RF

cable.

Copper wire

• Complete all connections between devices, and

then connect the power cord to the power outlet

to prevent damage to your TV.

NOTE

• Use a signal splitter to use 2 TVs or more.

• DTV Audio Supported Codec: MPEG,

Dolby Digital.

Other Connections

Connect your TV to external devices. For the best

picture and audio quality, connect the external

device and the TV with the HDMI cable.

NOTE

• Use only with the 3-pole 3.5 mm Stereo Jack.

• Do not connect your headphones or earphones

to the port for connecting an external speaker.

ENGLISH

Remote Control

(Use only when provided with your particular

model.)

The descriptions in this manual are based on

the buttons on the remote control. Please read

this manual carefully and use the TV correctly. To

install batteries, open the battery cover, replace

batteries (1.5 V AAA) matching the and ends

to the label inside the compartment, and close

the battery cover. Failure to match the correct

polarities of the battery may cause the battery

to burst or leak, resulting in fire, personal injury,

or ambient pollution. To remove the batteries,

perform the installation actions in reverse. This

remote uses infrared light. When in use, it should

be pointed in the direction of the TV’s remote

sensor.

CAUTION

• Do not mix old and new batteries, as this may

damage the remote control.

FLASHBK

AUDIO

(POWER) Turns the TV on or off.

Returns to the last TV channel.

Activates or deactivates the subtitles.

Selects an AV mode.

Resizes an image.

Changes the input source.

Number button Enters numbers.

(DASH) Inserts a dash between numbers such as 2-1

and 2-2.

Accesses the saved channel list.

Alternates between the two last channels

selected (pressing repeatedly).

Adjusts the volume level.

Accesses your favorite channel list.

Digital signal : Changes the audio language.

Analog signal : Changes the MTS sound.

Mutes all sounds.

Scrolls through the saved channels.

Moves to the previous or next screen.

FLASHBK

AUDIO

Changes the image mode.

Shows information on the current program.

Changes the sound mode.

Accesses the main menu.

Accesses the quick menu.

Navigation button (up/down/left/right) Scrolls through

menus or options.

Selects menus or options and confirms your input.

Returns to the previous screen.

Clears all on-screen displays and returns to TV

viewing.

Not functional.

Sets the length of time until the TV to turns off.

Control buttons ( ) Controls the MY MEDIA

menus and the SIMPLINK compatible devices (USB,

SIMPLINK).

These access special functions in some

menus.

ENGLISH

To select Picture Mode

SETTINGS PICTURE Picture Mode

Select the picture mode optimized for the viewing

environment or the program.

• Vivid Heightens contrast, brightness, and

sharpness to display vivid images.

• Standard Displays images in standard levels of

contrast, brightness and sharpness.

• APS APS (Auto power saving) mode reduces

power consumption by dimming control.

• Cinema / Sport / Game Displays the optimum

picture for movie, sport, or game.

• Expert Menu for adjusting picture quality that

allows experts and amateurs to enjoy the best TV

viewing. This menu for adjustment is provided

for ISF-certified picture tuning professionals. (ISF

logo can be used only on ISF-certified TVs.) ISFccc

: Imaging Science Foundation Certified Calibration

Control (Depending upon model)

• Depending upon the input signal, the available

range of picture modes may differ.

• Expert mode is for picture tuning professionals to

control and fine-tune using a specific image. For

normal images, the effects may not be drastic.

To Use Energy Saving Feature

[Depending upon model]

SETTINGS PICTURE Energy Saving

Reduces power consumption by adjusting peak

screen brightness.

• Off Turns off the Energy Saving.

• Minimum / Medium / Maximum Applies the pre-

set Energy Saving.

• Screen Off Screen is turned off and only sound is

played. Press any button on the remote control to

turn the screen back on.

To set Motion Eye Care

[Depending upon model]

SETTINGS PICTURE Picture Mode Picture

Option

• Motion Eye Care Automatically adjusts brightness

and reduces image blur based on image data to

reduce eyestrain.

Specifications

Product specifications may be changed without prior

notice due to upgrade of product functions.

Television System

ATSC, NTSC-M, 64 & 256 QAM

Program Coverage

VHF 2-13, UHF 14-69, DTV 2-69, CATV 1-135, CADTV

1-135

External Antenna Impedance

75 Ω

Environment Condition

• Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

• Operating Humidity

Less than 80 %

• Storage Temperature

-20 °C to 60 °C (-4 °F to 140 °F)

• Storage Humidity

Less than 85 %

RGB(PC), HDMI (PC) Supported Mode

(Use HDMI IN 1 for PC mode)

Resolution

Horizontal

Frequency (kHz)

Vertical

Frequency (Hz)

640 x 350 31.46 70.09

720 x 400 31.46 70.08

640 x 480 31.46 59.94

800 x 600 37.87 60.31

1024 x 768 48.36 60.00

1360 x 768 47.71 60.01

1152 x 864 54.34 60.05

1280 x 1024

(For FHD)

63.98 60.02

1920 x 1080

(For FHD)

67.50 60.00

* FHD 42LX330C, 49LX341C, 55LX341C, 60LX341C

65LX341C, 42LX530S, 49LX540S, 55LX540S

60LX540S, 65LX540S, 43LX310C, 49LX310C

43LX341C, 43LX540S, 32LX570M, 43LX570M

32LX770M 43LX770M

ENGLISH

HDMI (DTV) Supported Mode

Resolution

Horizontal

Frequency (kHz)

Vertical

Frequency (Hz)

640 x 480p

31.46 59.94

31.50 60.00

720 x 480p

31.47 59.94

31.50 60.00

1280 x 720p

44.96 59.94

45.00 60.00

1920 x 1080i

33.72 59.94

33.75 60.00

1920 x 1080p

26.97 23.97

27.00 24.00

33.71 29.97

33.75 30.00

67.43 59.94

67.50 60.00

Component Port Connecting Information

Component ports on the TV Y P

Video output ports on DVD player

Y P

Y B-Y R-Y

Y Cb Cr

Y Pb Pr

Component Supported Mode

Resolution

Horizontal

Frequency (kHz)

Vertical

Frequency (Hz)

720 x 480i

15.73 59.94

15.73 60.00

720 x 480p

31.47 59.94

31.50 60.00

1280 x 720p

44.96 59.94

45.00 60.00

1920 x 1080i

33.72 59.94

33.75 60.00

1920 x 1080p

26.97 23.976

27.00 24.00

33.71 29.97

33.75 30.00

67.432 59.94

67.50 60.00

Supported Video Formats

• Maximum: 1920 x 1080 @ 30p (only Motion JPEG

640 x 480 @ 30p)

• .asf, .wmv

[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4,

DivX5, DivX6, XViD, H.264/AVC, VC1(WMV3,

WVC1), MP43

[Audio] WMA Standard, WMA9(Pro), MP3, AAC,

AC3, MP3, 3D WMV Single Stream

• .divx, .avi

[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4,

DivX5, DivX6, XViD, H.264/AVC

[Audio] HE-AAC, LPCM, ADPCM, MPEG- 1 Layer I,

MPEG-1 Layer II, Dolby Digital, MPEG-1 Layer III

(MP3), *DTS

• .ts, .trp, .tp, .mts, .m2ts

[Video] H.264/AVC, MPEG-2, AVS, VC1

[Audio] MPEG-1 Layer I, MPEG-1 Layer II, MPEG-1

Layer III (MP3), Dolby Digital, Dolby Digital Plus,

AAC, HE-AAC, *DTS

• .vob

[Video] MPEG-1, MPEG-2

[Audio] Dolby Digital, MPEG-1 Layer I, MPEG- 1

Layer II, DVD-LPCM

• .mp4, .m4v, .mov

[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4,

DivX5, DivX6, XVID, H.264/AVC

[Audio] AAC, MPEG-1 Layer III (MP3), *DTS

• .mkv

[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4,

DivX5, DivX6, XVID, H.264/AVC

[Audio] HE-AAC, Dolby Digital, MPEG-1 Layer III

(MP3), *DTS, LPCM

• motion JPEG

[Video] MJPEG

[Audio] LPCM, ADPCM

• .mpg, .mpeg, .mpe

[Video] MPEG-1, MPEG-2

[Audio] MPEG-1 Layer I, MPEG-1 Layer II, Dolby

Digital, LPCM

• .dat

[Video] MPEG-1, MPEG-2

[Audio] MP2

• .flv

[Video] Sorenson H.263, H.264/AVC

[Audio] MP3, AAC, HE-AAC

• *rm, *rmvb

[Video] RV30, RV40

[Audio] Dolby Digital, AAC, HE-AAC, RA6(Cook)

• .3gp, .3gp2

[Video] H.264/AVC, MPEG-4 Part2

[Audio] AAC, AMR(NB/WB)

• *DTS / *rm / *rmvb : Depending upon model

ENGLISH

Supported Audio Formats

• File type : mp3

[Bit rate] 32 Kbps - 320 Kbps

[Sample freq.] 16 kHz - 48 kHz

[Support] MPEG1, MPEG2, Layer2, Layer3

• File Type : AAC

[Bit rate] Free Format

[Sample freq.] 8 kHz ~ 48 kHz

[Support] ADIF, ADTS

• File Type : M4A

[Bit rate] Free Format

[Sample freq.] 8 kHz ~ 48 kHz

[Support] MPEG-4

• File Type : WMA

[Bit rate] 128 Kbps ~ 320 Kbps

[Sample freq.] 8 kHz ~ 48 kHz

[Support] WMA7, WMA8, WMA9 Standard

• File Type : WMA 10 Pro

[Bit rate] ~ 768 Kbps

[Channel / Sample freq.]

M0 : up to 2 Channel @ 48 kHz

(Except LBR mode),

M1 : up to 5.1 Channel @ 48 kHz,

M2 : up to 5.1 Channel @ 96 kHz

[Support] WMA 10 Pro

• File Type : OGG

[Bit rate] Free Format

[Sample freq.] ~ 48 kHz

[Support] OGG Vorvis

Supported Photo Formats

• Category : 2D (jpeg, jpg, jpe)

[Available file type]

SOF0 : Baseline

SOF1 : Extend Sequential

SOF2 : Progressive

[Photo size] Minimum : 64 x 64

Maximum : Normal Type : 15360 (W) x 8640 (H)

Progressive Type : 1920 (W) x 1440 (H)

• Category : BMP

[Photo size] Minimum : 64 x 64

Maximum : 9600 x 6400

• Category : PNG

[Available file type] Interlace, Non-Interlace

[Photo size] Minimum : 64 x 64

Maximum : Interlace : 1200 x 800, Non-Interlace

: 9600 x 6400

• BMP and PNG format files may be slower to

display than JPEG.

Open Source Software Notice

Information

To obtain the source code under GPL, LGPL, MPL,

and other open source licenses, that is contained

in this product, please visit

http://opensource.lge.

com

In addition to the source code, all referred license

terms, warranty disclaimers and copyright notices

are available for download.

LG Electronics will also provide open source code

to you on CD-ROM for a charge covering the cost

of performing such distribution (such as the cost of

media, shipping, and handling) upon email request

[email protected]om

. This offer is valid for three

(3) years from the date on which you purchased

the product.

Troubleshooting

The software may be updated for improvement

in performance. The customer is responsible to

ensure the compatibility of their equipment with

any LG Electronics software. If needed, please

consult with LG Electronics and update new

software versions according to the guidance

provided by LG Electronics.

• Cannot control the TV with the remote control.

- Check if anything such as tape has been placed

over the receiver.

- Check if there is any obstacle between the

product and the remote control.

- Replace the batteries with new fresh ones.

• No image display and no sound is produced.

- Check if the product is turned on.

- Check if the power cord is connected to a wall

outlet.

- Check if there is a problem in the wall outlet by

connecting other products.

• The TV turns off suddenly.

- Check the power control settings.

The power supply may be interrupted.

- Check if the Off Time / Sleep Timer feature is

activated in the TIME settings.

- If there is no signal while the TV is on, the TV

will turn off automatically after 15 minutes of

inactivity.

ENGLISH

Licenses

Supported licenses may differ by model.

For more information about licenses,

visit

www.lg.com

Manufactured under license from Dolby

Laboratories.

Dolby and the double-D symbol are trademarks

of Dolby Laboratories.

The terms HDMI and HDMI High-Definition

Multimedia Interface, and the HDMI logo are

trademarks or registered trademarks of HDMI

Licensing LLC in the United States and other

countries.

This DivX Certified® device has passed rigorous

testing to ensure it plays DivX® video.

To play purchased DivX movies, first register your

device at vod.divx.com. Find your registration

code in the DivX VOD section of your device

setup menu.

DivX Certified® to play DivX® video up to HD

1080p, including premium content.

DivX®, DivX Certified® and associated logos are

trademarks of DivX, LLC and are used under

license.

Covered by one or more of the following

U.S. patents: 7,295,673; 7,460,668; 7,515,710;

7,519,274.

Important Information

(For LX530S, LX540S series)

You can download the SuperSign Software and TV

manual from LG Electronics website.

Visit

www.lgecommercial.com/digital-signage/

support/download/supersign.

Server : SuperSign W_Lite_Server_vX.X.X_Setup.zip

SuperSign C_vX.X.X_Setup.zip

SuperSign W_Editor_vX.X.X_Setup.zip

SuperSign W_Player_vX.X.X_Setup.zip

Manual : SuperSign W_Lite_Server_vX.X.X_Manual.zip

SuperSign C_vX.X.X_Manual.zip

SuperSign W_Editor_vX.X.X_Manual.zip

SuperSign W_Player_vX.X.X_Manual.zip

ENGLISH

Key Codes

• This feature is not available for all models.

Code

(Hexa)

Function Note

Code

(Hexa)

Function Note

00 CH +, PR + R/C Button 53 LIST R/C Button

01 CH -, PR - R/C Button 5B EXIT R/C Button

02 VOLUME + R/C Button 60 PIP(AD) R/C Button

03 VOLUME - R/C Button 61 R/C Button

06 > (Arrow Key / Right Key) R/C Button 63 R/C Button

07 < (Arrow Key / Left Key) R/C Button 71 R/C Button

08 Power R/C Button 72 R/C Button

09 MUTE R/C Button 79 RATIO / Aspect Ratio R/C Button

0B INPUT R/C Button 91 AD (Audio Description) R/C Button

0E SLEEP R/C Button 7A User Guide R/C Button

0F TV, TV / RAD R/C Button 7C Smart / Home R/C Button

10 -

* Number Key 0 - 9 R/C Button 7E SIMPLINK R/C Button

1A Q.View / FLASHBK R/C Button 8E ►► (Forward) R/C Button

1E FAV (Favorite Channel) R/C Button 8F ◄◄ (Rewind) R/C Button

20 Text (Teletext) R/C Button AA INFO R/C Button

21 T. Opt (Teletext Option) R/C Button AB Program Guide R/C Button

28 Return (BACK) R/C Button B0 ► (Play) R/C Button

30 AV (Audio / Video) MODE R/C Button B1 ꕗ (Stop / File List) R/C Button

39 CAPTION / SUBTITLE R/C Button BA ꕘ (Freeze / Slow Play / Pause) R/C Button

40 Λ

(Arrow Key / Cursor Up)

R/C Button BB Soccer R/C Button

41 V (Arrow Key / Cursor Down) R/C Button BD ꔄ (REC) R/C Button

42 My Apps R/C Button DC 3D R/C Button

43 MENU / SETTINGS R/C Button 99 AutoConfig R/C Button

44 OK / Enter R/C Button 9F App / * R/C Button

45 Q.MENU R/C Button 9B TV / PC R/C Button

4C LIST, - (ATSC Only) R/C Button 0A AUDIO R/C Button


R/C Button 52 SOUND R/C Button

R/C Button

• Key code 4C (0x4C) is available on ATSC / ISDB models which use major / minor channel.

(For South Korea, Japan, North America, Latin America except Colombia models)

ENGLISH

External Control Device Setup

• Image shown may differ from your TV.

Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer or an

A/V control system) to control the product’s functions externally.

Note: The type of control port on the TV can be different between model series.

• Please be advised that not all models support this type of connectivity.

• Cable is not provided.

USB to Serial Converter with USB Cable

USB Type

USB IN

(TV)

(PC)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(PC)

(TV)

(PC)

SERVICE ONLY

RS-232C IN

(CONTROL & SERVICE)

RS-232C IN

(CONTROL & SERVICE)

• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter which is

not made nor provided by LG.

• It can be purchased from computer stores that carry accessories for IT support professionals.

RS-232C With RS232C Cable

DE9 (D-Sub 9-pin) Type

• You need to purchase the RS-232C (DE9, D-Sub 9-pin female-to-female type) to RS-232C cable required for

the connection between the PC and the TV, which is specified in the manual.

• The connection interface may differ from your TV.

USB IN

(TV)

(PC)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(PC)

(TV)

(PC)

SERVICE ONLY

RS-232C IN

(CONTROL & SERVICE)

RS-232C IN

(CONTROL & SERVICE)

Phone jack Type

• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and the

TV, which is specified in the manual.

• For other models, connect to the USB port.

• The connection interface may differ from your TV.

USB IN

(TV)

(PC)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(PC

)

(TV)

(PC)

SERVICE ONLY

RS-232C IN

(CONTROL & SERVICE)

RS-232C IN

(CONTROL & SERVICE)

- or

USB IN

(TV)

(PC)

RS-232C IN

(CONTROL & SERVICE)

(TV)

(PC)

(TV)

(PC

)

SERVICE ONLY

RS-232C IN

(CONTROL & SERVICE)

RS-232C IN

(CONTROL & SERVICE)

ENGLISH

Customer Computer RS-232C Configurations

7-Wire Configuration

(Serial female-female NULL modem cable)

PC TV

RXD

2 3

TXD

3 2

RXD

GND

5 5

GND

DTR

4 6

DSR

6 4

DTR

RTS

7 8

CTS

8 7

RTS

D-Sub 9 D-Sub 9

3-Wire Configurations (Not standard)

PC TV

RXD

2 3

TXD

3 2

RXD

GND

5 5

GND

DTR

4 6

DSR

6 4

DTR

RTS

7 8

CTS

8 7

RTS

D-Sub 9 D-Sub 9

RS-232C

(Serial port)

Set ID

For Set ID number, see Real Data Mapping.

1. Press SETTINGS to access the main menus.

2. Press the navigation buttons to scroll to (General → About this TV or OPTION) and press OK.

3. Press the navigation buttons to scroll to SET ID and press OK.

4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.

5. When you are finished, press EXIT.

* (Depending upon model)
