THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING,

please visit our website at www.kitchenaid.com for additional information. Ifyou still need assistance, call us at 1-800-422-1230.

In Canada, visit our website at www.kitchenaid.ca or call us at 1-800-807-6777.

You will need your model and serial number, located on the inside wall of the refrigerator compartment.

Para obtener acceso a "lnstrucciones para el usuario del refrigerador" en espa_ol, o para obtener informaci6n adicional acerca de

su producto, visite: www.kitchenaid.com.

Necesitara su nQmerode modelo y de serie, ubicado en el interior del compartimiento del refrigerador.

Table of Contents / Table des mati res

REFRIGERATOR SAFETY ..................................................................... 1

INSTALLATION INSTRUCTIONS ......................................................... 2

REFRIGERATOR USE ........................................................................... 8

REFRIGERATOR CARE ....................................................................... 13

TROUBLESHOOTING .......................................................................... 14

WATER FILTER CERTIFICATIONS .................................................... 16

PRODUCT DATA SHEETS .................................................................. 17

WARRANTY .......................................................................................... 19

SI_CURITI_ DU RI_FRIGI_RATEUR ..................................................... 20

INSTRUCTIONS D'INSTALLATION ................................................... 21

UTILISATION DU RI=FRIGI=RATEUR ................................................. 27

ENTRETIEN DU RI_FRIGI_RATEUR ................................................... 33

DI_PANNAGE ........................................................................................ 34

FEUlLLES DE DONNI=ES SUR LE PRODUlT .................................... 37

WARRANTY ......................................................................................... 39

REFRIGERATOR SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously injured if you don't immediately

follow instructions.

You can be killed or seriously injured if you don't follow

instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

W10278586A

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:

• Plug into a grounded 3 prong outlet.

• Do not remove ground prong.

• Do not use an adapter.

• Do not use an extension cord.

• Disconnect power before servicing.

• Replace all parts and panels before operating.

• Remove doors from your old refrigerator.

• Use nonflammable cleaner.

• Keep flammable materials and vapors, such as gasoline,

away from refrigerator.

• Use two or more people to move and install refrigerator.

• Disconnect power before installing ice maker (on ice maker

kit ready models only).

• Use a sturdy glass when dispensing ice (on some models).

• Do not hit the refrigerator glass doors (on some models).

SAVE THESE INSTRUCTIONS

Proper Disposal of Your Old Refrigerator

Suffocation Hazard

Remove doors from your old refrigerator.

Failure to do so can result in death or brain damage.

IMPORTANT: Child entrapment and suffocation are not problems

of the past. Junked or abandoned refrigerators are still dangerous

- even if they will sit for "just a few days." Ifyou are getting rid of

your old refrigerator, please follow these instructions to help

prevent accidents.

Before You Throw Away Your Old Refrigerator or Freezer:

• Takeoff the doors.

• Leave the shelves in place so that children may not easily

climb inside.

INSTALLATION INSTRUCTIONS

Excessive Weight Hazard

Use two or more people to move and install

refrigerator.

Failure to do so can result in back or other injury.

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator for

cleaning or service, be sure to cover the floor with

cardboard or hardboard to avoid floor damage. Always pull

the refrigerator straight out when moving it. Do not wiggle or

"walk" the refrigerator when trying to move it, as floor

damage could occur.

Remove the Packaging

• Remove tape and glue residue from surfaces before turning

on the refrigerator. Rub a small amount of liquid dish soap

over the adhesive with your fingers. Wipe with warm water

and dry.

Do not use sharp instruments, rubbing alcohol, flammable

fluids, or abrasive cleaners to remove tape or glue. These

products can damage the surface of your refrigerator. For

more information, see "Refrigerator Safety."

• Dispose of/recycle all packaging materials.

Clean Before Using

After you remove all of the packaging materials, clean the inside of

your refrigerator before using it. See the cleaning instructions in

"Refrigerator Care."

important information to know about glass shelves

and covers:

Do not clean glass shelves or covers with warm water when

they are cold. Shelves and covers may break if exposed to

sudden temperature changes or impact, such as bumping.

Tempered glass is designed to shatter into many small,

pebble-size pieces. This is normal. Glass shelves and covers

are heavy. Use both hands when removing them to avoid

dropping.

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or fire.

To ensure proper ventilation for your refrigerator, allow for a V2"

(1.25 cm) of space on each side and at the top. Allow for a 1"

(2.54 cm) space behind the refrigerator. If your refrigerator has an

ice maker, allow extra space at the back for the water line

connections. When installing your refrigerator next to a fixed wall,

leave a 33/4'' (9.5 cm) minimum space between the refrigerator and

wall to allow the door to swing open.

NOTE: It is recommended that you do not install the refrigerator

near an oven, radiator, or other heat source. Do not install the

refrigerator in a location where the temperature will fall below 55°F

(13°C).

1/2" (1.25 cm) /

33/4" (9.5 cm)

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

Before you move your refrigerator into its final location, it is

important to make sure you have the proper electrical connection.

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15- or 20-amp fused, grounded

electrical supply is required. It is recommended that a separate

circuit serving only your refrigerator be provided. Use an outlet

that cannot be turned off by a switch. Do not use an

extension cord.

NOTE: Before performing any type of installation, cleaning, or

removing a light bulb, turn Cooling OFF, and then disconnect the

refrigerator from the electrical source. When you are finished,

reconnect the refrigerator to the electrical source and turn Cooling

ON. See "Using the Controls."

........... l"q" % I_"(;:1161IIII L!II}_:!IIl:l_r

Gather the required tools and parts before starting installation.

Read and follow the instructions provided with any tools listed

here.

TOOLS NEEDED:

• Flat-blade screwdriver • 1A"Nut driver

• 7/le"and V2"Open-end or two • _A"Drill bit

adjustable wrenches • Cordless drill

IMPORTANT:

• All installations must meet local plumbing code requirements.

• Do not use a piercing-type or ¾e" (4.76 mm) saddle valve

which reduces water flow and clogs more easily.

• Use copper tubing and check for leaks. Install copper tubing

only in areas where the household temperatures will remain

above freezing.

• For models with water filters, the disposable water filter

should be replaced at least every 6 months.

Wa_rPmssum

A cold water supply with water pressure of between 35 and

120 psi (241 and 827 kPa) is required to operate the water

dispenser and ice maker. Ifyou have questions about your water

pressure, call a licensed, qualified plumber.

Reverse Osmosis Water Supply

IMPORTANT: The pressure of the water supply coming out of a

reverse osmosis system going to the water inlet valve of the

refrigerator needs to be between 35 and 120 psi (241 and

827 kPa).

If a reverse osmosis water filtration system is connected to your

cold water supply, the water pressure to the reverse osmosis

system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).

If the water pressure to the reverse osmosis system is less than

40 to 60 psi (276 to 414 kPa):

• Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if necessary.

• Allow the storage tank on the reverse osmosis system to refill

after heavy usage.

If your refrigerator has a water filter, it may further reduce the

water pressure when used in conjunction with a reverse

osmosis system. Remove the water filter. See "Water Filtration

System."

If you have questions about your water pressure, call a licensed,

qualified plumber.

Read all directions before you begin.

IMPORTANT: If you turn the refrigerator on before the water line is

connected, turn the ice maker OFF.

Connect to Water Line

1. Unplug refrigerator or disconnect power.

2. Turn OFF main water supply. Turn ON nearest faucet long

enough to clear line of water.

3. Find a 1/2"to 11/4"(12.7 mm to 31.8 mm) vertical cold water

pipe near the refrigerator.

IMPORTANT:

• Make sure it is a cold water pipe.

Horizontal pipe will work, but the following procedure

must be followed: Drill on the top side of the pipe, not the

bottom. This will help keep water away from the drill. This

also keeps normal sediment from collecting in the valve.

Determine the length of copper tubing you need. Measure

from the connection on the rear of the refrigerator to the water

pipe. Add 7 ft (2.1 m) to allow for cleaning. Use 1/4"(6.35 mm)

O.D. (outside diameter) copper tubing. Be sure both ends of

copper tubing are cut square.

5. Using a cordless drill, drill a V4"hole in the cold water pipe you

have selected.

A. Cold waterpipe

B. Pipe clamp

C. Copper tubing

D. Compression nut

E. Compression sleeve

F. Shutoff valve

G. Packing nut

6. Fasten the shutoff valve to the cold water pipe with the pipe

clamp. Be sure the outlet end is solidly in the 1/4"drilled hole in

the water pipe and that the washer is under the pipe clamp.

Tighten the packing nut. Tighten the pipe clamp screws slowly

and evenly so the washer makes a watertight seal. Do not

overtighten.

7. Slip the compression sleeve and compression nut on the

copper tubing as shown. Insert the end of the tubing into the

outlet end squarely as far as it will go. Screw compression nut

onto outlet end with adjustable wrench. Do not overtighten or

you may crush the copper tubing.

8. Place the free end of the tubing in a container or sink, and turn

ON the main water supply. Flush the tubing until water is clear.

Turn OFF the shutoff valve on the water pipe.

Connect to Refrigerator

Depending on your model, the water line may come down from

the top or up from the bottom. Follow the connection instructions

for your model.

Style 1

1. Remove the plastic cap from water supply connection. Place

brass nut and compression sleeve on copper tube end as

shown.

A. Brass nut

B. Compression sleeve

2. Place end of the copper tubing into the plastic water valve

supply line. Slide the brass nut over the sleeve and screw the

nut into supply line.

3. Using an adjustable wrench, hold the nut on the plastic water

line to keep it from moving. Then, with a second wrench turn

the nut on the copper tubing counterclockwise to completely

tighten. Do not overtighten.

4. Check connection by pulling on the copper tubing.

5. Fastentheplasticwaterlinetotherefrigeratorwitha"P"

clamp.Slidetheplasticwaterlineintotheretainer. CompletetheInstallation

A. Brass nut C. "P" Clamp

B. Compression sleeve

6. Turn on water supply to refrigerator and check for leaks.

Correct any leaks.

Style 2

1. Remove plastic cap from water valve inlet port. Attach the

copper tube to the valve inlet using a compression nut and

sleeve as shown. Tighten the compression nut. Do not

overtighten. Confirm copper tubing is secure by pulling on

copper tubing.

2. Create a service loop with the copper tubing. Avoid kinks

when coiling the copper tubing. Fasten the plastic water line

to the refrigerator cabinet with a "P" clamp.

A. Copper tubing

B. Compression nut

C. Compression sleeve

D. Water valve inlet port

E. "P" clamp

Turn on water supply to refrigerator and check for leaks.

Correct any leaks.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

1. Plug into a grounded 3 prong outlet.

2. Flush the water system. See "Water and Ice Dispensers."

All graphics referenced in the following instructions are included

later in this section after "Final Steps."

Remove and Replace Handles

1. Using a 3/32"or 1/8"Allen wrench, loosen the two setscrews

located on the side of each handle. See Metal Handle

graphics 1 and 2.

2. Pull the handle straight out from the door. Make sure you keep

the screws for reattaching the handles.

3. To replace the handles, reverse the directions.

Remove Doors and Hinges

IMPORTANT:

• Remove food and any adjustable door or utility bins from

doors.

• Keep the refrigerator doors closed until you are ready to lift

them free from the cabinet.

NOTE: Provide additional support for the refrigerator door

while the hinges are being removed. Do not depend on the

door gasket magnets to hold the door in place while you are

working.

TOOLS NEEDED: _e", 3/8",1/4"hex-head socket wrench,

#2 Phillips screwdriver, and aflat-blade screwdriver.

1. Unplug refrigerator or disconnect power.

2. Remove the base grille. Grasp the grille firmly and pull it

toward you.

3. Startingwiththeright-handsidedoor,removethepartsforthe

tophingeasshowninTopHingegraphic.Lifttherefrigerator

doorfromthebottomhingepin.

4. Removethehingepincoverfromthebottomhingepinand

keepitforlateruse.SeeBottomHingegraphic.

5. Removetophingecoverfromleftsiderefrigeratordoor.

6. Removethefa£;adefromthefrontofthetopofthecabinet.

Removethescrewonthebacksideofthecenterofthe

fa£_ade,thenslidethefa£;adeforwardandoutfromunderthe

hinge.

7. Disconnectthewiringpluglocatedontopofthehingeby

wedgingaflat-bladescrewdriveroryourfingernailbetween

thetwosections.

Disconnect the water line by pulling back on the locking collar

while pulling the water line out of the water line connector.

Remove the parts for the top hinge as shown in Top Hinge

graphic. Lift the left-hand side door from the bottom hinge pin.

NOTE: On some models, remove the hinge pin cover from the

bottom hinge pin and keep it for later use. See Bottom Hinge

graphic.

10. Using a 3/8"hex wrench, remove the leveling leg brackets from

the bottom of the cabinet. Keep screws for later use.

Replace Doors and Hinges

Assemble the parts for the top hinges as shown in Top Hinge

graphic. Do not tighten the screws completely.

Replace the parts for the bottom hinge as shown in Bottom

Hinge graphic. Tighten screws. Replace the refrigerator door.

NOTE: Provide additional support for the refrigerator door

while the hinges are being moved. Do not depend on the door

gasket magnets to hold the door in place while you are

working.

Align the door so that the bottom of the refrigerator door

aligns evenly with the top of the freezer drawer. Tighten all

screws.

4. Reconnect the wiring plug on top of the left-hand side

refrigerator door.

5. Reconnect the water line by pulling back the locking collar

ring while firmly pushing the water line into the connector.

6. Check for leaks. Replace the fa£_adeand top hinge covers.

Remove and Replace Freezer Drawer

IMPORTANT: Two people may be required to remove and replace

the freezer drawer. Graphics are included later inthis section.

Remove Drawer Front

1. Open the freezer drawer to full extension.

2. Loosen the four screws attaching the drawer glides to the

drawer front. See Drawer Front Removal graphic.

NOTE: Loosen screws three to four turns. Keep the screws in

the drawer front.

3. Lift drawer front upward and off the screws. See Drawer Front

Removal graphic.

Replace Drawer Front

1. Slide the drawer glides out of the freezer compartment. Insert

the screws in the top of the drawer front into the slots in the

drawer brackets. See Drawer Front Replacement graphic.

2. Pull the drawer brackets toward you to position the two

screws in the bottom of the drawer front into the brackets.

See Drawer Front Replacement graphic.

3. Completely tighten the four screws.

Adjust the Doors

There are two leveler foot screws located at the base of the

refrigerator. If your refrigerator seems unsteady or you want the

door to close more easily, use the following instructions.

1. Using a 1/4"hex driver, turn the leveling screw on each side to

raise or lower that side of the refrigerator.

NOTE: Having someone push against the top of the

refrigerator takes some weight off the leveling screws which

makes them easier to turn. It may take several turns of the

leveling screw to adjust the tilt of the refrigerator.

• To raise, turn the leveling screw clockwise.

• To lower, turn the leveling screw counterclockwise.

A. Leveling screw

Open the door again to make sure that it closes as easily as

you like. If not, tilt the refrigerator slightly more to the rear by

turning both leveling screws clockwise. It may take several

more turns, and you should turn both screws the same

amount.

3. Replace the base grille.

Final Steps

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

1. Plug into a grounded 3 prong outlet.

2. Return all removable parts to doors and drawer and food to

refrigerator and freezer.

Top Hinges

A. Hinge Cover Screw

B, Top Hinge Cover

C, 5/18"Hex-Head Hinge Screws

D. Top Hinge

Bottom Hinges

A, Hinge Pin Cover

B, Bottom Hinge

C. Hinge Screws

Wiring Plug

Water Connection

\\\\

\\\

Fa_:ade

A. Screw

A. 3/32"or 1/8"Setscrew

A, 3/32"or 1/8"Setscrew

A. Loosen 4 Door Bracket Screws

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiI

REFRIGERATOR USE

There are two refrigerator compartment doors. The doors can be

opened and closed either separately or together.

There is a vertically-hinged seal on the left refrigerator door.

• When the left side door is opened, the hinged seal

automatically folds inward so that it is out of the way.

• When both doors are closed, the hinged seal automatically

forms a seal between the two doors.

A. Hinged seal

The refrigerator and freezer controls are located on the dispenser

panel and display screen.

Cooling On/Off

Toturn cooling off, press and hold the TEMP button on the

dispenser panel for 3 seconds. Your refrigerator and freezer will

not cool when cooling is off.

Toturn cooling back on, press and hold the TEMP button for

3 seconds again.

Temperature Controls

For your convenience, your refrigerator and freezer controls are

preset at the factory.

Toview set points, press the TEMP button on the dispenser panel.

The factory recommended set points are 0°F (-18°C) for the

freezer and 38°F (3°C) for the refrigerator.

IMPORTANT:

• Wait 24 hours before you put food into the refrigerator. If you

add food before the refrigerator has cooled completely, your

food may spoil.

NOTE: Adjusting the set points to a higher (colder) than

recommended setting will not cool the compartments any

faster.

The preset settings should be correct for normal household

usage. The controls are set correctly when milk or juice is as

cold as you like and when ice cream is firm.

Wait at least 24 hours between adjustments. Recheck the

temperatures before other adjustments are made.

The display screen on the dispenser control panel has a

backlight, which will turn off automatically when the controls

have not been used for 2 minutes or more. When the backlight

is off, the first press of a control button or the display screen

will only reactivate the backlight, without changing any

settings. Within 2 minutes after the backlight has been

reactivated, additional presses of control buttons or the

display screen will change the applicable settings.

Display screen

Language Preference

The language of the text on the display screen can be set to

English, Spanish or French.

• To change the display screen text from English to Spanish or

French, press the HOME button on the dispenser panel. On

the display screen, press OPTIONS, then PREFERENCES,

then LANGUAGE. Select ESPANOL (Spanish) or FRAN(_AIS

(French), wait 15 seconds or press BACK, and the screen text

will be changed.

To change the display screen text from Spanish to English,

press the HOME button on the dispenser panel. On the

display screen, press .OPCIONES, then PREFERENCIAS., then

IDIOMA. Select INGLES, wait 15 seconds or press ATRAS,

and the screen text will be changed.

To change the display screen text from French to English,

press the HOME button on the dispenser.panel. On the

display screen, press OPTIONS, then PREFERENCES, then

LANGUE. Select ANGLAIS, wait 15 seconds or press

RETOUR, and the screen text will be changed.

Door Ajar Alarm

The Door Ajar Alarm feature sounds an alarm when the refrigerator

or freezer door is open for 5 minutes and the product cooling is

turned on. The alarm will repeat every 2 minutes.

• Close both doors to turn it off. The feature then resets and will

reactivate when either door is left open again for 5 minutes.

If you need to keep the doors open and wish to silence the

alarm for up to 5 minutes, press SNOOZE on the display

screen.

If you need to keep the doors open and wish to silence the

alarm for longer than 5 minutes, press RESET on the display

screen. The alarm will remain off until both doors are closed,

then will reactivate when either door is left open again for

5 minutes.

Adjusting the Controls

To adjust the set points, press the TEMP button on the dispenser

panel. Set points and adjusting information will appear on the

display screen.

Refrigerator Controls

Make sure REFRIGERATOR is selected. The up and down arrows

on the display screen allow you to adjust the refrigerator

compartment temperature. The set point range for the refrigerator

is 33°F to 45°F (0°C to 7°C).

• Press the down arrow to lower the set point.

• Press the up arrow to raise the set point.

NOTE: To view Celsius temperatures, press UNITS. To return

the display setting to Fahrenheit, press UNITS again.

Freezer Controls

Make sure FREEZER is selected. The up and down arrows on the

display screen allow you to adjust the freezer compartment

temperature. The set point range for the freezer is -5°F to 5°F

(-21 °C to -15°C).

• Press the down arrow to lower the set point.

• Press the up arrow to raise the set point.

NOTE: To view Celsius temperatures, press UNITS. To return

the display setting to Fahrenheit press UNITS again.

CONDITION: TEMPERATURE

ADJUSTMENT:

REFRIGERATOR too cold REFRIGERATOR Setting

1° higher

REFRIGERATOR too warm REFRIGERATOR Setting

1° lower

FREEZER too cold FREEZER Setting

1° higher

FREEZER too warm/too little ice FREEZER Setting

1° lower

Press BACK to exit adjust mode.

Photos

The refrigerator comes from the factory with the display screen

preloaded with photos provided by the manufacturer. You may

choose to keep or delete these photos.

NOTE: The display screen has a capacity of 100 photos.

USB Port

A USB port is located under the display screen in the dispenser

area as shown.

IMPORTANT:

• A USB memory device is not provided with the refrigerator.

Some USB memory devices are not readable. The USB port

supports only USB 1.1 and 2.0 standard memory devices.

Upload photos stored in the main directory of the USB

memory device, not from any designated folder.

The USB reads only JPEG photos. To decrease upload time,

consider reducing the image resolution.

NOTE: The recommended image resolution is 480 x

272 pixels.

Do not download any photos directly from digital cameras or

other external devices.

• The USB port does not work as a charging device.

• The ice and water dispensers will not function when the USB

memory device is inserted into the USB port.

Upload Photos to the Display

1. Remove the cover from the USB port.

2. With the Home Screen shown on the Display, press PHOTOS

and insert the USB memory device. The control panel will

display all JPEG photos found on the USB memory device.

NOTE: Up to 100 photos can be uploaded to the display

screen.

A. USB port cover

B. USB memory device

Touch the photos you wish to select. The selected photos will

be highlighted.

NOTE: A selected image will be unselected if it is touched

again.

4. Press UPLOAD SELECTED to upload just the selected

photos, or press UPLOAD THIS PAGE to upload the six

photos visible on the screen. Repeat this process to upload

up to 100 photos.

5. Remove the USB memory device and replace the cover on the

USB port.

IMPORTANT:

Uploading will be interrupted if any of the following occur:

• If any of the FILL buttons, dispenser paddles or CANCEL are

pressed.

• If a door ajar alarm, or power outage occurs during uploading.

• If the USB memory device is removed.

NOTE: If the USB memory device is removed while uploading

photos, the display will show only the photos that have

completely transferred. If no photos have completely

transferred, the display returns to the Home screen.

Delete Photos from the Display

Photos can be removed from the display once uploaded.

1. Select the image(s) you wish to delete by touching it on the

display. The selected photos will be highlighted.

2. Press DELETE SELECTED to delete just the selected photos,

or press DELETE ALL to delete all uploaded photos.

NOTE: A FACTORY RESET will also delete all uploaded

photos from the display screen.

IMPORTANT:

Deleting will be interrupted if any of the following occur:

• If any of the FILL buttons, dispenser paddles or CANCEL are

pressed.

• If a door ajar alarm, or power outage occurs during deleting.

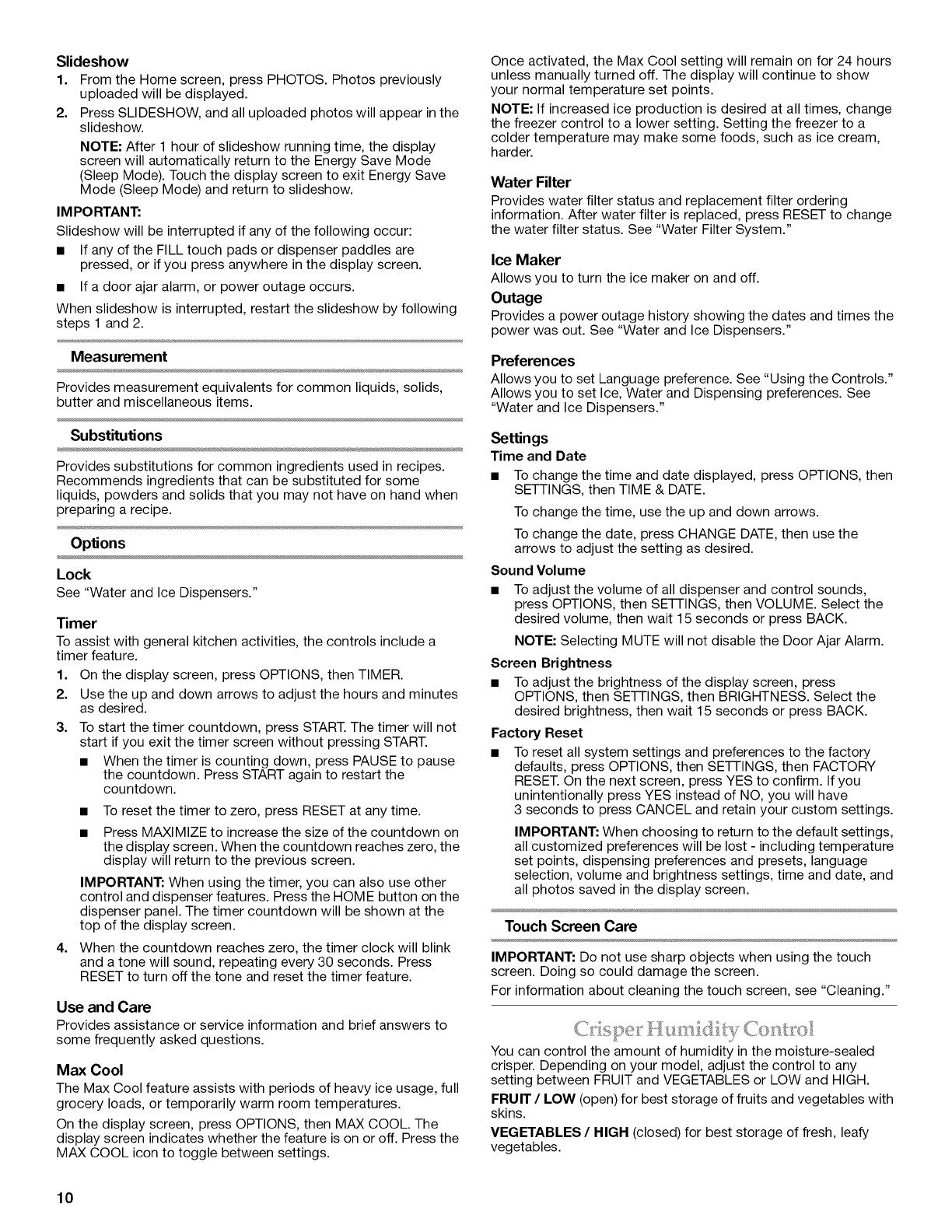

Slideshow

1. From the Home screen, press PHOTOS. Photos previously

uploaded will be displayed.

2. Press SLIDESHOW, and all uploaded photos will appear in the

slideshow.

NOTE: After 1 hour of slideshow running time, the display

screen will automatically return to the Energy Save Mode

(Sleep Mode). Touch the display screen to exit Energy Save

Mode (Sleep Mode) and return to slideshow.

IMPORTANT:

Slideshow will be interrupted if any of the following occur:

• If any of the FILL touch pads or dispenser paddles are

pressed, or if you press anywhere in the display screen.

• If a door ajar alarm, or power outage occurs.

When slideshow is interrupted, restart the slideshow by following

steps 1 and 2.

Measurement

Provides measurement equivalents for common liquids, solids,

butter and miscellaneous items.

Substitutions

Provides substitutions for common ingredients used in recipes.

Recommends ingredients that can be substituted for some

liquids, powders and solids that you may not have on hand when

preparing a recipe.

Options

Lock

See "Waterand Ice Dispensers."

Timer

To assist with general kitchen activities, the controls include a

timer feature.

1. On the display screen, press OPTIONS, then TIMER.

2. Use the up and down arrows to adjust the hours and minutes

as desired.

To start the timer countdown, press START. The timer will not

start if you exit the timer screen without pressing START.

• When the timer is counting down, press PAUSE to pause

the countdown. Press START again to restart the

countdown.

• To reset the timer to zero, press RESET at any time.

• Press MAXIMIZE to increase the size of the countdown on

the display screen. When the countdown reaches zero, the

display will return to the previous screen.

IMPORTANT: When using the timer, you can also use other

control and dispenser features. Press the HOME button on the

dispenser panel. The timer countdown will be shown at the

top of the display screen.

When the countdown reaches zero, the timer clock will blink

and a tone will sound, repeating every 30 seconds. Press

RESET to turn off the tone and reset the timer feature.

Use and Care

Provides assistance or service information and brief answers to

some frequently asked questions.

Max Cool

The Max Cool feature assists with periods of heavy ice usage, full

grocery loads, or temporarily warm room temperatures.

On the display screen, press OPTIONS, then MAX COOL. The

display screen indicates whether the feature is on or off. Press the

MAX COOL icon to toggle between settings.

Once activated, the Max Cool setting will remain on for 24 hours

unless manually turned off. The display will continue to show

your normal temperature set points.

NOTE: If increased ice production is desired at all times, change

the freezer control to a lower setting. Setting the freezer to a

colder temperature may make some foods, such as ice cream,

harder.

Water Filter

Provides water filter status and replacement filter ordering

information. After water filter is replaced, press RESET to change

the water filter status. See "Water Filter System."

Ice Maker

Allows you to turn the ice maker on and off.

Outage

Provides a power outage history showing the dates and times the

power was out. See "Water and Ice Dispensers."

Preferences

Allows you to set Language preference. See "Using the Controls."

Allows you to set Ice, Water and Dispensing preferences. See

"Water and Ice Dispensers."

Settings

Time and Date

• To change the time and date displayed, press OPTIONS, then

SETTINGS, then TIME & DATE.

To change the time, use the up and down arrows.

To change the date, press CHANGE DATE, then use the

arrows to adjust the setting as desired.

Sound Volume

• To adjust the volume of all dispenser and control sounds,

press OPTIONS, then SE-i-i-INGS, then VOLUME. Select the

desired volume, then wait 15 seconds or press BACK.

NOTE: Selecting MUTE will not disable the Door Ajar Alarm.

Screen Brightness

• To adjust the brightness of the display screen, press

OPTIONS, then SE-i-i-INGS, then BRIGHTNESS. Select the

desired brightness, then wait 15 seconds or press BACK.

Factory Reset

• To reset all system settings and preferences to the factory

defaults, press OPTIONS, then SE-i-i-INGS, then FACTORY

RESET. On the next screen, press YES to confirm. If you

unintentionally press YES instead of NO, you will have

3 seconds to press CANCEL and retain your custom settings.

IMPORTANT: When choosing to return to the default settings,

all customized preferences will be lost - including temperature

set points, dispensing preferences and presets, language

selection, volume and brightness settings, time and date, and

all photos saved in the display screen.

Touch Screen Care

IMPORTANT: Do not use sharp objects when using the touch

screen. Doing so could damage the screen.

For information about cleaning the touch screen, see "Cleaning."

You can control the amount of humidity in the moisture-sealed

crisper. Depending on your model, adjust the control to any

setting between FRUIT and VEGETABLES or LOW and HIGH.

FRUIT / LOW (open) for best storage of fruits and vegetables with

skins.

VEGETABLES / HIGH (closed) for best storage of fresh, leafy

vegetables.

IMPORTANT:

After connecting the refrigerator to awater source or replacing

the water filter, flush the water system. Use a sturdy container

to depress and hold the water dispenser lever for 5 seconds,

then release it for 5 seconds. Repeat until water begins to

flow. Once water begins to flow, continue depressing and

releasing the dispenser lever (5 seconds on, 5 seconds off)

until a total of 4 gal. (15 L) has been dispensed. This will flush

air from the filter and water dispensing system, and prepare

the water filter for use. Additional flushing may be required in

some households. As air is cleared from the system, water

may spurt out of the dispenser.

You can dispense water by the ounce, cup, or liter. Press

UNITS to select your desired setting. Minimum and maximum

volumes are listed below.

Units Minimum

Ounces 1

Cups V4

Liters 0.05

Maximum

128

Press the up and down arrows to adjust the volume as

desired.

• Allow 24 hours for the refrigerator to cool down and chill

water.

Allow 24 hours to produce the first batch of ice. Discard the

first three batches of ice produced.

The dispensing system will not operate when the refrigerator

door is open and/or when a USB device is placed into the

USB port.

Options

Depending on your model, you may have one or more of the

following options: the ability to select crushed or cubed ice, a pull-

out tray, a light that turns on when you use the dispenser, a lock to

avoid unintentional dispensing or an indicator that tells you when

there has been a power outage.

NOTES:

• The language of the text on the display screen can be set to

English, Spanish or French. For information about changing

the language, see "Using the Controls."

The display screen on the dispenser control panel has a

backlight, which will turn off automatically when the controls

have not been used for 2 minutes or more. When the backlight

is off, the first press of a control button or the display screen

will only reactivate the backlight, without changing any

settings. Within 2 minutes after the backlight has been

reactivated, additional presses of control buttons or the

display screen will change the applicable settings.

Water Dispenser

IMPORTANT: Dispense enough water every week to maintain a

fresh supply.

The default display unit for water dispensing is ounces. The units

can be changed to cups or liters.

To Dispense Water (Standard):

1. Press a sturdy glass against the water dispenser pad OR

place the glass below the water dispenser and press the water

dispenser button.

NOTE: Most coffee cups (commonly 4 to 6 oz [118 to 177 mL]

per cup) are not the same size as a measuring cup (8 oz

[237 mL]). You may need to adjust the volume to avoid

unintentionally overfilling coffee cups. The Measured Fill

feature is based on standard household water pressure of

60 psi. Users with low water pressure may need to adjust the

volume selection accordingly.

To dispense water, press a sturdy glass against the water

dispenser pad OR place the glass below the water dispenser

and press the water dispenser button.

Ware

NOTE: While dispensing water, the digital display will count

down how much water remains to be dispensed, according to

the volume you selected. The flow of water will automatically

stop once the desired volume has been dispensed.

To stop dispensing before the selected volume has been

dispensed, remove the glass from the dispenser pad OR press

the water dispenser button a second time.

NOTE: If you stop dispensing before the desired volume has

been dispensed, the digital display will continue to show how

much water remains to be dispensed. The display will exit the

Measured Fill screen after 15 seconds of inactivity.

To select a new volume or select the same volume again, you

must first finish dispensing the selected volume, or turn off the

Measured Fill feature and then turn it back on.

Preset Volumes

The dispenser can store up to three preset water volumes, for

easy dispensing into commonly used containers.

• To store presets, press WATER, then PRESET. Locate a blank

or unwanted preset on the display screen. Press and hold that

preset for 3 seconds, and the preset adjustment menu will

appear on the display screen. Adjust the units and volume of

water as desired, as instructed in steps 2 and 3 of the

previous section. Press PRESET to save the preset.

• To use presets, press WATER, then PRESET, then press and

release the desired preset. Dispense water as instructed in

steps 4 and 5 of the previous section.

W&ste_

2. Remove the glass OR release the button to stop dispensing.

To Dispense Water (Measured Fill}:

Measured Fill allows you to dispense a specified amount of water

with the touch of a few buttons.

NOTE: The amount of water you select will be dispensed. Be sure

that the container is empty and can hold the entire volume. If ice is

in the container, you may need to adjust your selection.

1. Press WATER on the display screen to turn the feature on.

NOTE: The dispenser will automatically exit the Measured Fill

screen after 15 seconds of inactivity.

Pull-out Tray

Your dispenser includes a small pull-out tray at the bottom of the

dispenser.

• The tray can be pulled slightly to better support large

containers. It is designed to catch small spills and allow for

easy cleaning. There is no drain in the tray.

NOTE: The tray can be removed from the dispenser and

carried to the sink to be emptied or cleaned. Pull the tray out

until it hits the stop, then gently lift up on the back of the tray

and slide it out the rest of the way.

Remove the glass OR release the button to stop dispensing.

NOTE: Ice may continue to dispense for up to 10 seconds

after removing the glass from the pad or releasing the button.

The dispenser may continue to make noise for a few seconds

after dispensing.

A. Pull-out tray

Ice Dispenser

Ice dispenses from the ice maker storage bin in the freezer when

the dispenser pad is pressed. The dispensing system will not

operate when the refrigerator door is open. To turn off the ice

maker, see "Ice Maker and Storage Bin."

Your ice maker can produce crushed and cubed ice. Before

dispensing ice, press ICE on the display screen to select which

type of ice you would like to dispense.

The display screen indicates which type of ice is selected.

CRUSHED CUBED

For crushed ice, cubes are crushed before being dispensed. This

may cause a slight delay when dispensing crushed ice. Noise

from the ice crusher is normal, and pieces of ice may vary in size.

When changing from crushed to cubed, a few ounces of crushed

ice will be dispensed along with the first cubes.

To Dispense Ice:

1. Select the desired type of ice.

Cut Hazard

Use a sturdy glass when dispensing ice.

Failure to do so can result in cuts.

Press a sturdy glass against the ice dispenser pad OR place

the glass below the ice dispenser and press the ice dispenser

button.

)c@

Hold the glass close to the dispenser opening so ice does not

fall outside of the glass.

IMPORTANT: You do not need to apply a lot of pressure to the

pad or button in order to activate the ice dispenser. Pressing

hard will not make the ice dispense faster or in greater

quantities.

Dispenser Light

When you use the dispenser, the light will automatically turn on.

If you want the light to be on continuously, press LIGHT on the

display screen to toggle between the ON and OFF settings. The

display screen indicates which mode is selected.

ON: The dispenser light will remain on at a consistent brightness.

OFF: The dispenser light will remain off except when dispensing

water or ice.

The dispenser lights are LEDs that cannot be changed. If it

appears that your dispenser lights are not working, see

"Troubleshooting" for more information.

Dispenser Lock

The dispenser can be turned off for easy cleaning or to avoid

unintentional dispensing by small children and pets.

NOTE: The lock feature does not shut off power to the refrigerator,

to the ice maker, or to the dispenser light. It simply deactivates the

dispenser controls and levers. To turn off the ice maker, see "Ice

Maker and Storage Bin."

• To lock the dispenser, press OPTIONS, then LOCK, then YES.

The display screen will confirm when the dispenser is locked.

• To unlock the dispenser, press OPTIONS, then LOCK, then

YES. The display screen will confirm when the dispenser is

unlocked.

Power Outage Indicator (on some models)

The power outage indicator lets you know if the power supply to

your refrigerator is cut off for more than 1 hour.

When power is restored, a power outage alert will appear on the

display screen. The display shows how long the refrigerator was

without power, using exact times if the clock has been set.

When the indicator is on, all other dispenser functions are

disabled. To use the dispenser, you must reset the power outage

indicator.

• Press RESET on the display screen, then press YES to

confirm that you want to reset the indicator.

From the Home screen, you can view the power outage history for

the refrigerator. Press OPTIONS, then OUTAGE.

The ice maker and storage bin are located in the upper left-hand

side of the refrigerator compartment.

IMPORTANT: Flush the water system before turning on the ice

maker. See "Water and Ice Dispensers."

Turning the Ice Maker On/Off

Your ice maker has an automatic shutoff. When the ice maker is

on, sensors will automatically stop ice production when the

storage bin is full. The ice maker will remain set to ON, and ice

production will resume when the bin is no longer full.

To manually turn off the ice maker, press OPTIONS on the display

screen, then ICE MAKER. On the next screen, press ICE MAKER

again to toggle between ON and OFE When the ice maker is set

to OFF, it will stop producing ice.

Removing and Replacing Ice Storage Bin

To Remove the Ice Storage Bin:

NOTE: It is not necessary to turn off the ice maker when removing

the storage bin.

1. Pull the handle to unlock the ice storage bin.

2. Hold both sides of the ice storage bin, tilt the bin forward and

lift slightly to remove.

To Replace the Ice Storage Bin:

IMPORTANT: The ice storage bin must be locked in place for

proper ice dispensing.

1. Replace the ice storage bin on the door.

2. Pivot the bin so that it is firmly in place, and push back to

assure that it is secure.

Ice Production Rate

• Allow 24 hours to produce the first batch of ice. Discard the

first three batches of ice produced.

The ice maker should produce approximately 40 batches of

ice in a 24-hour period.

To increase ice production, lower the freezer and refrigerator

temperature. See "Using the Controls." Wait 24 hours

between adjustments.

Remember

The quality of your ice will be only as good as the quality of the

water supplied to your ice maker. Avoid connecting the ice

maker to a softened water supply. Water softener chemicals

(such as salt) can damage parts of the ice maker and lead to

poor quality ice. If a softened water supply cannot be avoided,

make sure the water softener is operating properly and is well

maintained.

Do not use anything sharp to break up the ice in the bin. This

can cause damage to the ice bin and dispenser mechanism.

Do not store anything on top of the ice maker or in the ice

storage bin.

The water filter is located in the upper right-hand corner of the

refrigerator compartment.

Do not use with water that is microbiologically unsafe or

of unknown quality without adequate disinfection before

or after the system. Systems certified for cyst reduction

may be used on disinfected waters that may contain

filterable cysts.

IMPORTANT: The disposable water filter should be replaced at

least every 6 months. If the water flow to the water dispenser or

ice maker decreases noticeably before 6 months have passed,

replace the water filter more often.

Replacing the Water Filter

To purchase a replacement water filter, Part Number

UKFS001AXX, contact your dealer or call 1-877-232-6771 in the

U.S.A. or 1-800-807-6777 in Canada.

IMPORTANT: Air trapped inthe water system may cause water

and filter to eject. Always dispense water for at least 2 minutes

before removing the filter or blue bypass cap.

1. To access the filter, press upward on the ribbed section of the

water filter cover.

2. Turn filter counterclockwise to remove.

3. Remove sealing label from replacement filter and insert the

filter end into the filter head.

4. Turn the filter clockwise until it stops. Snap the filter cover

closed.

5. Flush the water system. See "Water and Ice Dispensers."

NOTE: The dispenser feature may be used without a water filter

installed. Your water will not be filtered. If this option is chosen,

replace the filter with the blue bypass cap.

REFRIGERATOR CARE

The water filter status light will help you know when to change

your water filter. When the water filter status display changes from

"NORMAL" to "ORDER," this tells you that it is almost time to

replace the water filter. Replace the disposable water filter when

the water filter status display changes to "REPLACE." The

REPLACE (red) icon will blink and an alert beep will sound one

time after water is dispensed.

If water flow to your water dispenser or ice maker decreases

noticeably, change the filter sooner. The disposable water filter

should be replaced at least every 6 months depending on your

water quality and usage. To change the filter, see "Water Filtration

System."

INDICATO R: STATU S:

NORMAL (green) New filter installed

ORDER (yellow) Order filter

REPLACE (red) OR Replace water filter

when water flow decreases

After changing the water filter, reset the status light. On the display

screen, press OPTIONS, then WATER FILTER, then RESET, then

YES. The status light will change from REPLACE (red) to NORMAL

(green) when the system is reset.

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or fire.

Both the refrigerator and freezer sections defrost automatically.

However, clean both sections about once a month to avoid odor

buildup. Wipe up spills immediately.

IMPORTANT:

Because air circulates between both sections, any odors

formed in one section will transfer to the other. You must

thoroughly clean both sections to eliminate odors. To avoid

odor transfer and drying out of food, wrap or cover foods

tightly.

Do not use abrasive or harsh cleaners such as window sprays,

scouring cleansers, flammable fluids, cleaning waxes,

concentrated detergents, nail polish remover, bleaches or

cleansers containing petroleum products. Do not use paper

towels, scouring pads, or other harsh cleaning tools that may

scratch or damage the materials.

Clean the Interior

1. Unplug refrigerator or disconnect power.

2. Using a clean sponge or soft cloth and a mild detergent in

warm water, hand wash, rinse, and dry removable parts and

interior surfaces thoroughly.

3. Plug in refrigerator or reconnect power.

Clean the Touch Screen Display on the Dispenser Panel

1. Make sure the refrigerator is unplugged or the power is

disconnected before wiping the screen, to avoid

unintentionally changing the settings.

2. Mix a solution of mild detergent in warm water. Dampen a soft,

lint-free cloth with the solution and gently wipe the screen.

NOTE: Do not spray or wipe liquids directly onto the screen,

or over-saturate the cloth.

3. Plug in refrigerator or reconnect power.

Clean the Exterior Surfaces

Unplug refrigerator or disconnect power.

Using a clean sponge or soft cloth and a mild detergent in

warm water, wash, rinse and thoroughly dry stainless steel

and painted metal exteriors.

• To keep your stainless steel refrigerator looking like new

and to remove minor scuffs or marks, it is suggested that

you use the manufacturer's approved Stainless Steel

Cleaner and Polish, Part Number 4396920. To order the

cleaner, call 1-800-442-9991 U.S.A. or 1-800-807-6777

Canada.

IMPORTANT: This cleaner isfor stainless steel parts only!

Do not allow the Stainless Steel Cleaner and Polish to come

into contact with any plastic parts such as the trim pieces,

dispenser covers or door gaskets. If unintentional contact

does occur, clean plastic part with a sponge and mild

detergent in warm water. Dry thoroughly with a soft cloth.

3. Plug in refrigerator or reconnect power.

Clean the Condenser

There is no need for routine condenser cleaning in normal home

operating environments. If the environment is particularly greasy

or dusty, or there is significant pet traffic in the home, the

condenser should be cleaned every 2 to 3 months to ensure

maximum efficiency.

If you need to clean the condenser:

1. Unplug refrigerator or disconnect power.

2. Remove the base grille.

3. Use a vacuum cleaner with a soft brush to clean the grille, the

open areas behind the grille and the front surface area of the

condenser.

4. Replace the base grille when finished.

5. Plug in refrigerator or reconnect power.

NOTE: Not all appliance bulbs will fit your refrigerator. Be sure to

replace the bulb with an appliance bulb of the same size, shape,

and wattage (no greater than 40 watts).

1. Unplug refrigerator or disconnect power.

2. Replace burned-out bulb(s) with appliance light bulb(s) no

greater than 40 watts.

3. Plug in refrigerator or reconnect power.

TROUBLESHOOTING

First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions)

to possibly avoid the cost of a service call.

In the U.S.A., www.kitchenaid.com In Canada, www.kitchenaid.ca

The refrigerator will not operate

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

Is outlet working? Plug in a lamp to see if the outlet is

working.

Household fuse blown or circuit breaker tripped? Replace

the fuse or reset the circuit breaker. If the problem continues,

call an electrician.

Are controls on? Make sure the refrigerator controls are on.

See "Using the Control(s)."

New installation? Allow 24 hours following installation for the

refrigerator to cool completely.

NOTE: Adjusting the temperature controls to coldest setting

will not cool either compartment more quickly.

The motor seems to run too much

Your new refrigerator may run longer than your old one due to its

high-efficiency compressor and fans. The unit may run even

longer if the room is warm, a large food load is added, doors are

opened often, or if the doors have been left open.

• Power cord unplugged? Plug into a grounded 3 prong outlet.

The refrigerator seems noisy

Refrigerator noise has been reduced over the years. Due to this

reduction, you may hear intermittent noises from your new

refrigerator that you did not notice from your old model. Below are

listed some normal sounds with explanations.

• Buzzing - heard when the water valve opens to fill the ice

maker

Pulsating - fans/compressor adjusting to optimize

performance

Hissing/Rattling - flow of refrigerant, movement of water

lines, or from items placed on top of the refrigerator

Sizzling/Gurgling - water dripping on the heater during

defrost cycle

Popping - contraction/expansion of inside walls, especially

during initial cool-down

Water running - may be heard when ice melts during the

defrost cycle and water runs into the drain pan

Creaking/Cracking - occurs as ice is being ejected from the

ice maker mold.

The doors will not close completely

• Door blocked open? Move food packages away from door.

• Bin or shelf in the way? Push bin or shelf back into the

correct position.

The doors are difficult to open

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or fire.

• Gaskets dirty or sticky? Clean gaskets and contact surfaces

with mild soap and warm water. Rinse and dry with soft cloth.

Temperature is too warm

New installation? Allow 24 hours following installation for the

refrigerator to cool completely.

Door(s) opened often or left open? Allows warm air to enter

refrigerator. Minimize door openings and keep doors fully

closed.

Large load of food added? Allow several hours for

refrigerator to return to normal temperature.

Controls set correctly for the surrounding conditions?

Adjust the controls a setting colder. Check temperature in

24 hours. See "Using the Control(s)."

There is interior moisture buildup

NOTE: Some moisture buildup is normal.

• Humid room? Contributes to moisture buildup.

• Door(s) opened often or left open? Allows humid air to enter

refrigerator. Minimize door openings and keep doors fully

closed.

The ice maker is not producing ice or not enough ice

Refrigerator connected to a water supply and the supply

shutoff valve turned on? Connect refrigerator to water

supply and turn water shutoff valve fully open.

Kink in the water source line? A kink in the line can reduce

water flow. Straighten the water source line.

Ice maker turned on? Make sure ice maker is on. See "Ice

Maker and Storage Bin."

New installation? Wait 24 hours after ice maker installation

for ice production to begin. Wait 72 hours for full ice

production.

Refrigerator door closed completely? Close the door firmly.

If it does not close completely, see "The doors will not close

completely."

Large amount of ice recently removed? Allow 24 hours for

ice maker to produce more ice.

Ice cube jammed in the ice maker ejector arm?

Remove ice from the ejector arm with a plastic utensil.

Water filter installed on the refrigerator? Remove filter and

operate ice maker. If ice volume improves, then the filter may

be clogged or incorrectly installed. Replace filter or reinstall it

correctly.

Reverse osmosis water filtration system connected to

your cold water supply? This can decrease water pressure.

See "Water Supply Requirements."

The ice cubes are hollow or small

NOTE: This is an indication of low water pressure.

• Water shutoff valve not fully open? Turn the water shutoff

valve fully open.

• Kink in the water source line? A kink in the line can reduce

water flow. Straighten the water source line.

Water filter installed on the refrigerator? Remove filter and

operate ice maker. If ice quality improves, then the filter may

be clogged or incorrectly installed. Replace filter or reinstall it

correctly.

• Reverse osmosis water filtration system connected to

your cold water supply? This can decrease water pressure.

See "Water Supply Requirements."

• Questions remain regarding water pressure? Call a

licensed, qualified plumber.

Off-taste, odor or gray color in the ice

• New plumbing connections? New plumbing connections

can cause discolored or off-flavored ice.

Ice stored too long? Discard ice. Wash ice bin. Allow

24 hours for ice maker to make new ice.

Odor transfer from food? Use airtight, moisture proof

packaging to store food.

Are there minerals (such as sulfur) in the water? A water

filter may need to be installed to remove the minerals.

Water filter installed on the refrigerator? Gray or dark

discoloration in ice indicates that the water filtration system

needs additional flushing. Flush the water system before using

a new water filter. Replace water filter when indicated. See

"Water Filtration System."

The water and ice dispenser will not operate properly

Refrigerator connected to a water supply and the supply

shutoff valve turned on? Connect refrigerator to water

supply and turn water shutoff valve fully open.

Kink in the water source line? Straighten the water source

line.

New installation? Flush and fill the water system. See "Water

and Ice Dispensers."

Is the water pressure at least 35 psi (241 kPa)? The water

pressure to the home determines the flow from the dispenser.

See "Water Supply Requirements."

Water filter installed on the refrigerator? Remove filter and

operate dispenser. If water flow increases, the filter may be

clogged or incorrectly installed. Replace filter or reinstall it

correctly.

Refrigerator door closed completely? Close the door firmly.

If it does not close completely, see "The doors will not close

completely."

Recently removed the doors? Make sure the water

dispenser wire/tube assembly has been properly reconnected

at the top of the refrigerator door. See "Refrigerator Doors and

Drawer."

Reverse osmosis water filtration system connected to

your cold water supply? This can decrease water pressure.

See "Water Supply Requirements."

Water is leaking from the dispenser system

NOTE: One or two drops of water after dispensing is normal.

• Glass not being held under the dispenser long enough?

Hold the glass under the dispenser 2 to 3 seconds after

releasing the dispenser lever.

• New installation? Flush the water system. See "Water and

Ice Dispensers."

• Recently changed water filter? Flush the water system. See

"Water and Ice Dispensers."

Water from the dispenser is warm

NOTE: Water from the dispenser is only chilled to 50°F (10°C).

• New installation? Allow 24 hours after installation for the

water supply to cool completely.

• Recently dispensed large amount of water? Allow 24 hours

for water supply to cool completely.

• Water not been recently dispensed? The first glass of water

may not be cool. Discard the first glass of water.

• Refrigerator connected to a cold water pipe? Make sure

the refrigerator is connected to a cold water pipe. See "Water

Supply Requirements."

WATER FILTER

CERTIFICATIONS

State of Calitbmia

Department of Public llealth

WaterTreatmentDevice

CertificateNumber

03- 1583

Date Issued: September 16, 2008

Date Revised: April 22, 2009

Trademark/Model Designation

UK2"8001AXX-75(

46 9000-750

67003523-75(

Manulacturer: Cuno Inc

Replacement Element_

UKI:8001

Turbidity

Organic Contanlinants

Atrazine

Lindane

Benzene

Ca_o_r_n

p-dlchlorobenzene

'roxaphene

]e(raehloroetkylene

Rated Service Capacity: 750 gal. Rated Service Flow: 0.78 gpm

Conditions of Certification:

Do not use where water is microbiologicalIy unsalc or with water of unknown quality except thai systems certified

lbr cyst reduction may be used im disinlhcted waters fllat nlay contaill filterable cysts,

State of California

Department of Public Heallh

WaterTreatmentDevice

CertificateNumber

09- 1979

Date Issued: May 8, 2009

Trademark/Model Designation Replacement Elements

UKF800IAXX-200 UKF800I

Manufacturer: Cunolnc. a3_Con_p _ly ......

Cysts

Turbidity

Carbo/hran )

ChIorobel_zei_e )

Endrin y

Ethylbenzene

1 indane )

o-dichlorobenzene

p-dichlorobenzene )

Tetrachloroethylene

Toxaphene

Rated Service Capacity: 200 gal Rated Service Flow: 0.78 gpm

Conditions of Certification:

Do not use where water is microbiologically unsafe or with water of unknown quality, except that systems certified

fbr cyst reduction may be used on disinfected walers that may contain filterable cysts•

PRODUCT DATA SHEETS

Interior Water Filtration System

Model UKF8001AXX-750 Capacity 750 Gallons (2839 Liters)

System tested and certified by NSF International against NSF/ANSI Standard 42 for the

reduction of Chlorine Taste and Odor, Particulate Class I*; and against NSF/ANSI

Standard 53 for the reduction of Lead, Mercury, Atrazine, Benzene, p-Dichlorobenzene,

Carbofuran, Toxaphene, Cysts, Turbidity, Asbestos, Tetrachloroethylene and Lindane.

This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The

concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the

permissible limit for water leaving the

Substance Reduction NSF Reduction Average Influent Challenge Maximum Average Minimum% Average%

Aesthetic Effects Requirements Influent Concentration Effluent Effluent Reduction Reduction

Chlorine Taste/Odor 50% reduction 2.00 mg/L 2.0 mg/L + 10% 0.06 mg/L ** 0.050625 mg/L 97.00% 97.52%

Particulate Class I* 85% reduction 14,000,000 #/mL Atparticles/mLleast10,000 370,000 #/mL 196,666 #/mL 97.40% 99.00%

Contaminant NSF Reduction Average Influent Challenge Maximum Average Minimum% Average%

Reduction Requirements Influent Concentration Effluent Effluent Reduction Reduction

Lead: @ pH 6.5 0.010 mg/L 0.150 mg/U 0.15 mg/L + 10% < 0.001 mg/L < 0.001 mg/L >99.30% >99.30%

Lead: @ pH 8.5 0.010 mg/L 0.150 mg/U 0.15 mg/L _+10% < 0.001 mg/L < 0.001 mg/L >99.30% >99.30%

Mercury: @ pH 6.5 0.002 mg/L 0.006 mg/L 0.006 mg/L + 10% 0.0005 mg/L 0.0003 mg/L 91.70% 95.00%

Mercury: @ pH 8.5 0.002 mg/L 0.0059 mg/L 0.006 mg/L _+10% 0.0018 mg/L 0.00073 mg/L 69.20% 88.10%

Benzene 0.005 mg/L 0.0133 mg/L 0.015 mg/L _+10% 0.0005 mg/L 0.0005 mg/L 96.10% 96.30%

p-Dichlorobenzene 0.075 mg/L 0.210 mg/L 0.225 mg/L _+10% < 0.0005 mg/L < 0.0005 mg/L >99.80% >99.80%

Carbofuran 0.040 mg/L 0.0753 mg/L 0.08 mg/L _+10% 0.027 mg/L 0.008 mg/L 64.60% 73.45%

Toxaphene 0.003 mg/L 0.015 mg/L 0.015 _+10% < 0.001 mg/L < 0.001 mg/L >93.3% >93.3%

Atrazine 0.003 mg/L 0.0102 mg/L 0.009 mg/L _+10% 0.0027 mg/L 0.00105 mg/L 76.30% 89.40%

Asbestos >99% 126.5 MF/L 107to 108fibers/L tt < 0.17 MF/L < 0.17 MF/L >99.99% >99.99%

Live Cysts _ >99.95% 122,500 #/L 50,000/L min. < 1 #/U < 1 #/U >99.99% >99.99%

Turbidity 0.5 NTU 10.5 NTU 11 _+1 NTU 0.30 NTU 0.125 NTU 97.30% 98.80%

Lindane 0.0002 mg/L 0.0019 mg/L 0.002 _+10% < 0.00016 mg/L 0.000035 mg/L 91.80% 97.90%

Tetrachloroethylene 0.005 mg/L 0.015 mg/L 0.015 mg/L _+10% < 0.0005 mg/L < 0.0005 mg/L >96.6% >96.6%

system, as specified in NSF/ANSI Standards 42 and 53.

Test Parameters: pH = 7.5 _+0.5 unless otherwise noted. Flow = 0.78 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 68°F _+5°F

(20°0 _+3°0).

• It is essential that operational, maintenance, and filter •

replacement requirements be carried out for the product to

perform as advertised.

• The disposable water filter should be replaced at least every

6 months.

The filter monitor system measures the amount of water that

passes through the filter and alerts you to replace the filter.

When 90% of the filter's rated life is used, the yellow (Order)

light comes on. When 100% of the filter's rated life is used, the

red (Replace) light comes on, and it is recommended that you

replace the filter. For models without filter status lights,

replace the filter every 6 months. Use replacement filter

model UKF8001AXX-750.2009 suggested retail price of

$44.99 U.S.A./S49.95 Canada. Prices are subject to change

without notice.

Refer to the "Water Filtration System" section for the

Manufacturer's name and telephone number.

Refer to the "Warranty" section for the Manufacturer's limited

warranty.

Application Guidelines/Water Supply Parameters

Water Supply City or Well

Water Pressure 35 - 120 psi (241 - 827 kPa)

Water Temperature 33 ° - 100°F (1o _ 38oc)

Service Flow Rate 0.78 gpm (2.9 L!min.) @60 psi

The product is for cold water use only.

Do not use with water that is microbiologically unsafe or of

unknown quality without adequate disinfection before or after

the system. Systems certified for cyst reduction may be used

on disinfected waters that may contain filterable cysts.

*Class I particle size: >0.5 to <1 um

**Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.

tThese contaminants are not necessarily in your water supply. Performance may vary based on local water conditions.

ttFibers greater than 10 um in length

_Based on the use of Cryptosporidium parvum oocysts

® NSF is a registered trademark of NSF International.

Interior Water Filtration System

Model UKF8001AXX-200 Capacity 200 Gallons (757 Liters)

System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of

Chlorine Taste and Odor, Particulate Class I*; and against NSF/ANSI Standard 53 for the reduction of

Lead, Mercury, Atrazine, Benzene, p-Dichlorobenzene, Carbofuran, Toxaphene, Cysts, Turbidity,

Asbestos, O-Dichlorobenzene, Ethylbenzene, Chlorobenzene, Endrin, Tetrachloroethylene and Lindane.

This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The

concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the

permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53.

Substance Reduction NSF Reduction Average Influent Challenge Maximum Average Minimum% Average%

Aesthetic Effects Requirements Influent Concentration Effluent Effluent Reduction Reduction

Chlorine Taste/Odor 50% reduction 2.00 mg/L 2.0 mg/L _+10% 0.06 mg/L 0.050625 mg/L 97.00% 97.52%

Particulate Class I* 85% reduction 14,000,000 #/mL Atparticles/mLleast10,000 370,000 #/mL** 196,666 #/mL 97.40% 99.00%
